Pipeline Components

Borosilicate glass pipeline components — straight sections, bends, tees, crosses, reducers, jacketed sections and closures for building complete process lines.

Pipeline Components

23 products

Pipe Section

13 items
Pipe SectionBorosilicate glass straight pipe section with beaded ends

Pipe Section

Straight glass pipe section, DN 15 to DN 600

View details

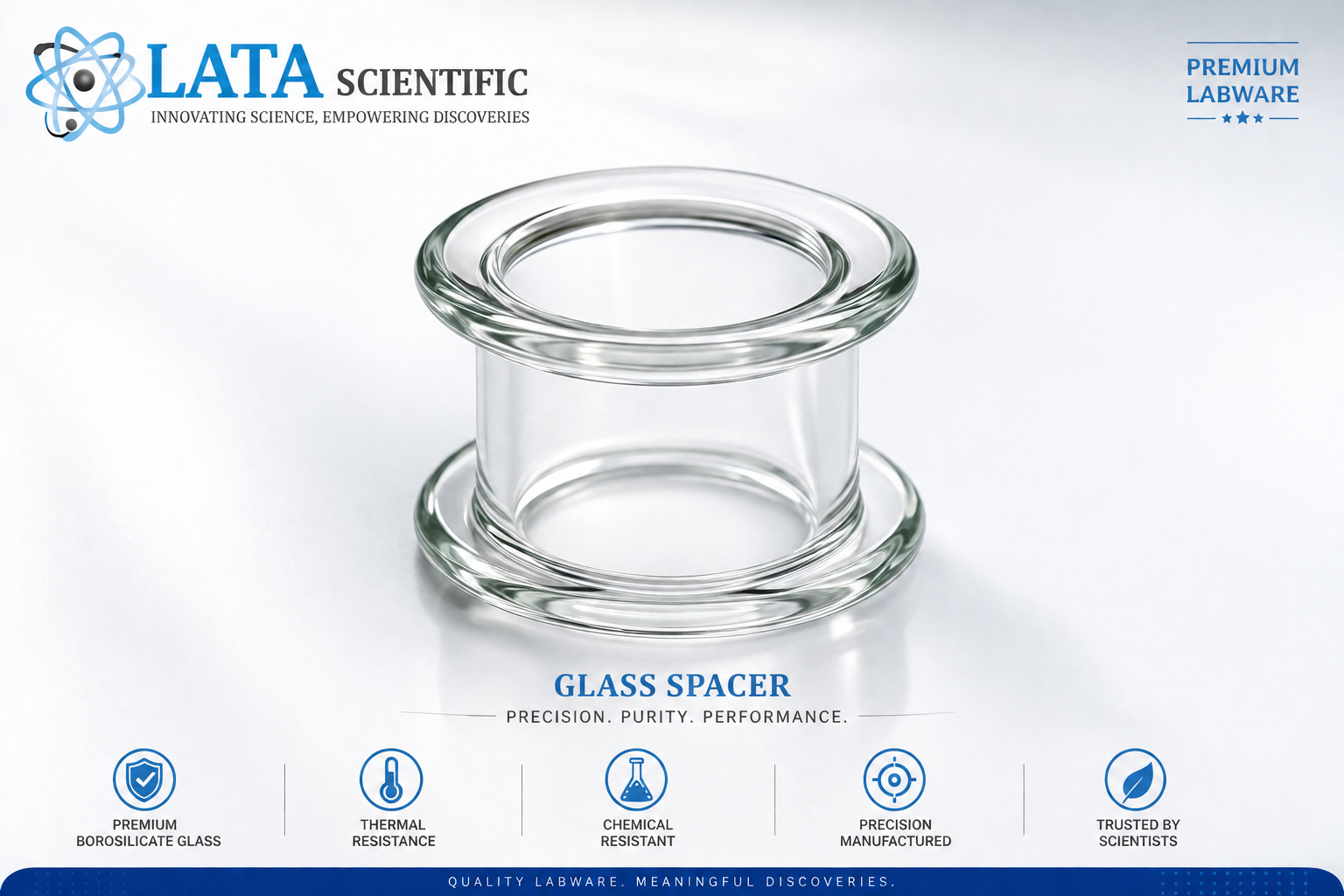

Pipe SectionBorosilicate glass spacer ring for making up small increments in pipeline length

Spacer

Glass spacer for small length increments, DN 15 to DN 50

View details

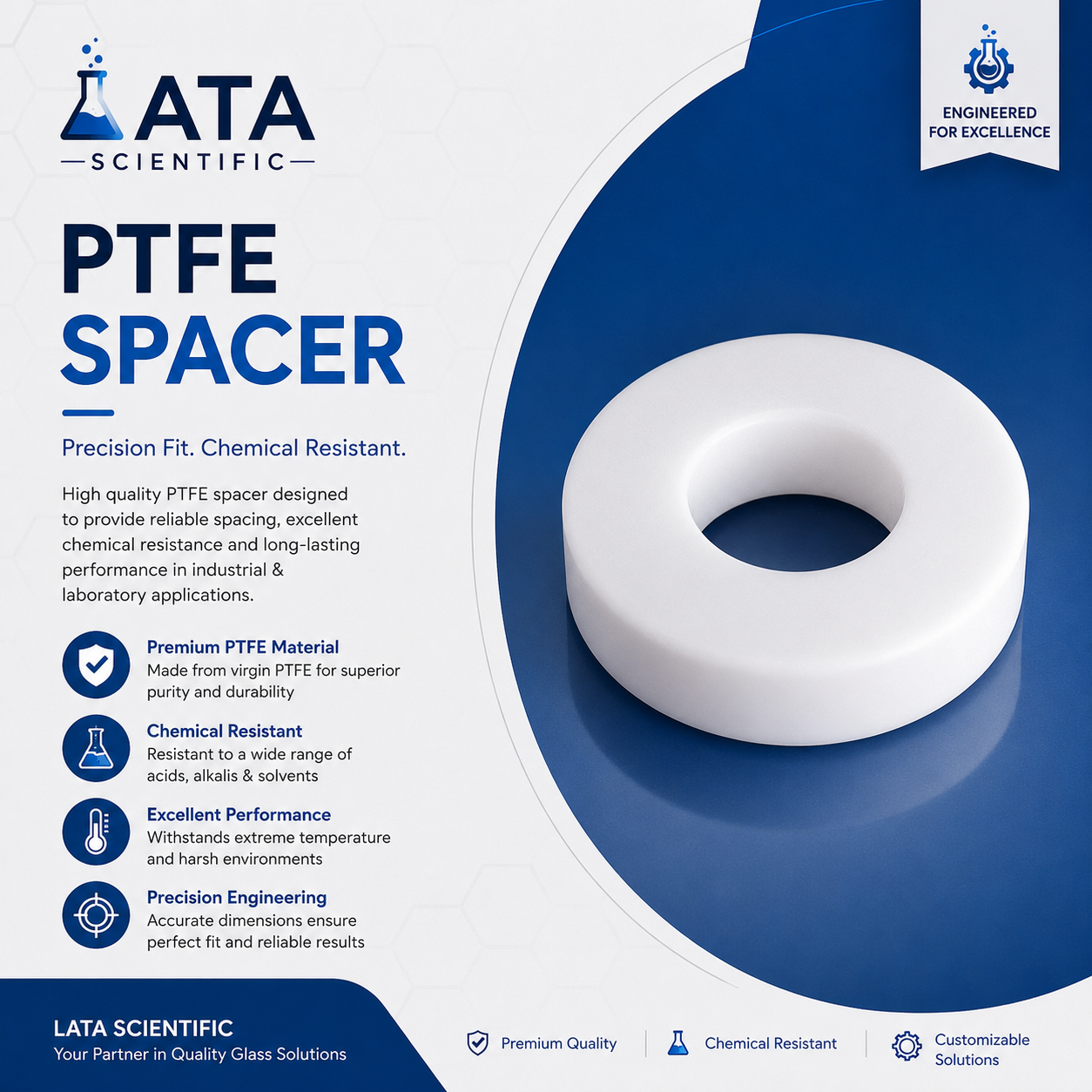

Pipe SectionPTFE spacer ring for glass pipeline length adjustment

PTFE Spacer

PTFE spacer, DN 15 to DN 50, 5 to 20 mm

View details

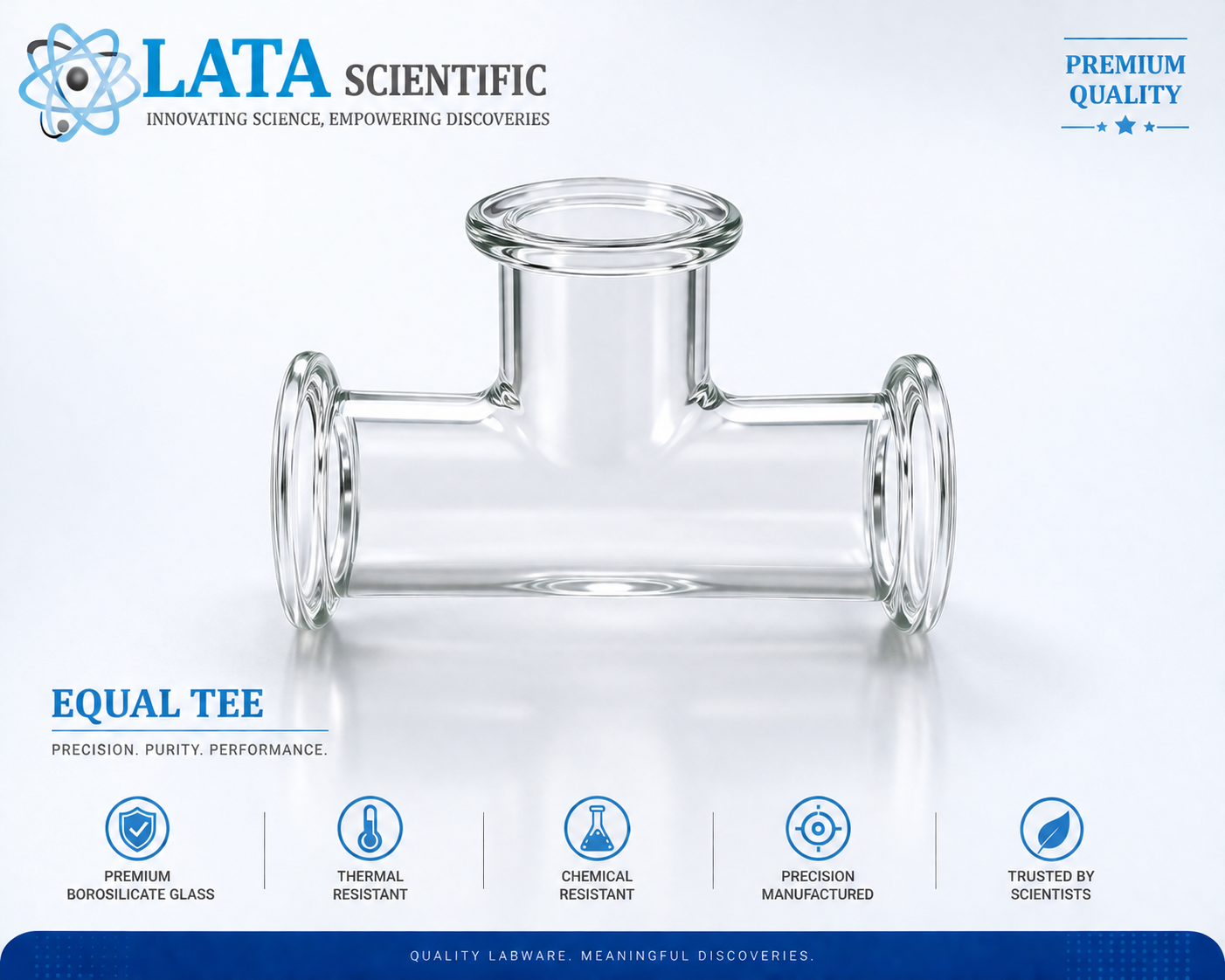

Pipe SectionBorosilicate glass equal tee with three branches of the same bore

Equal Tee

Glass equal tee, DN 15 to DN 300

View details

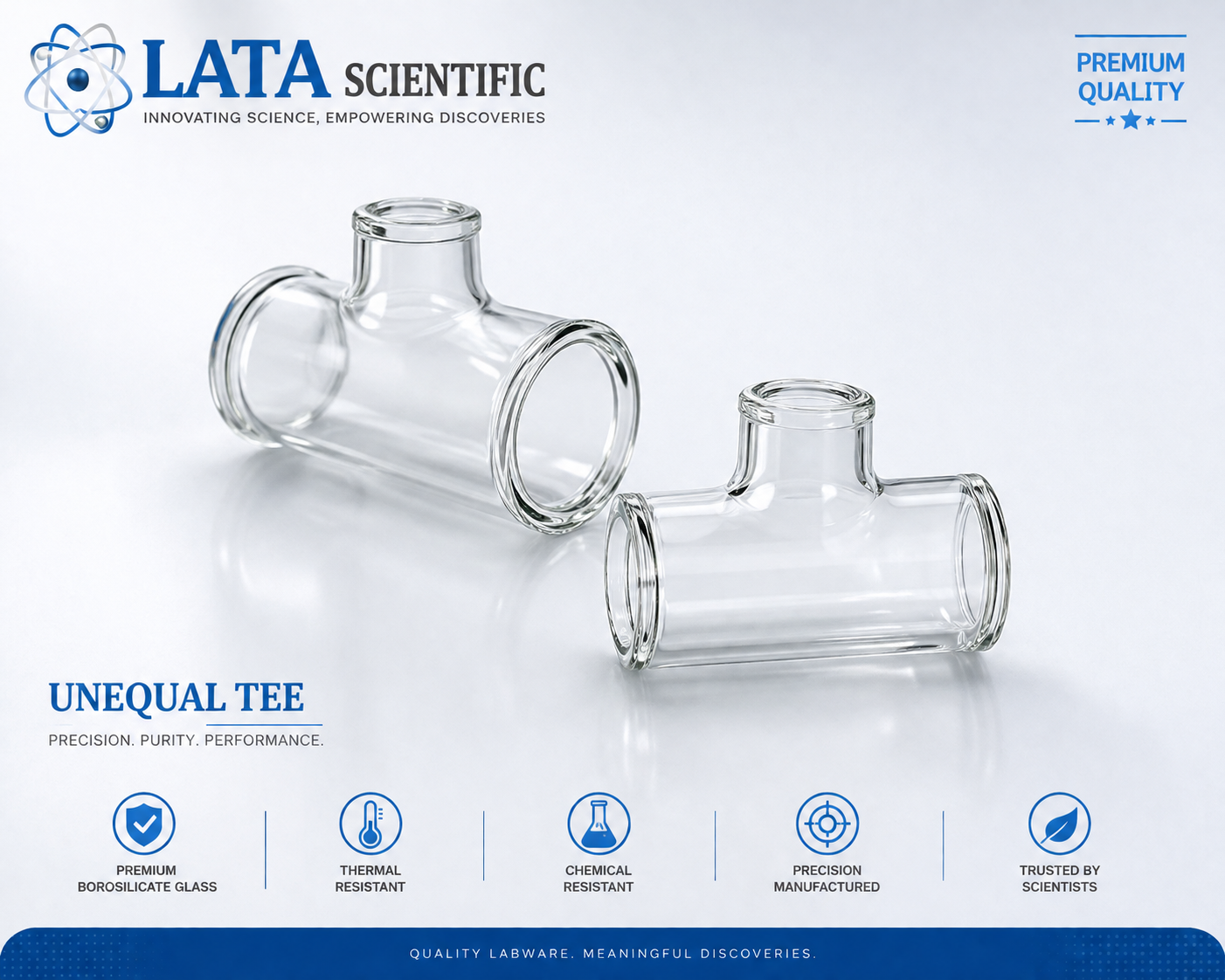

Pipe SectionBorosilicate glass unequal tee with a smaller branch than the run

Unequal Tee

Glass reducing tee, DN 25×15 to DN 600×300

View details

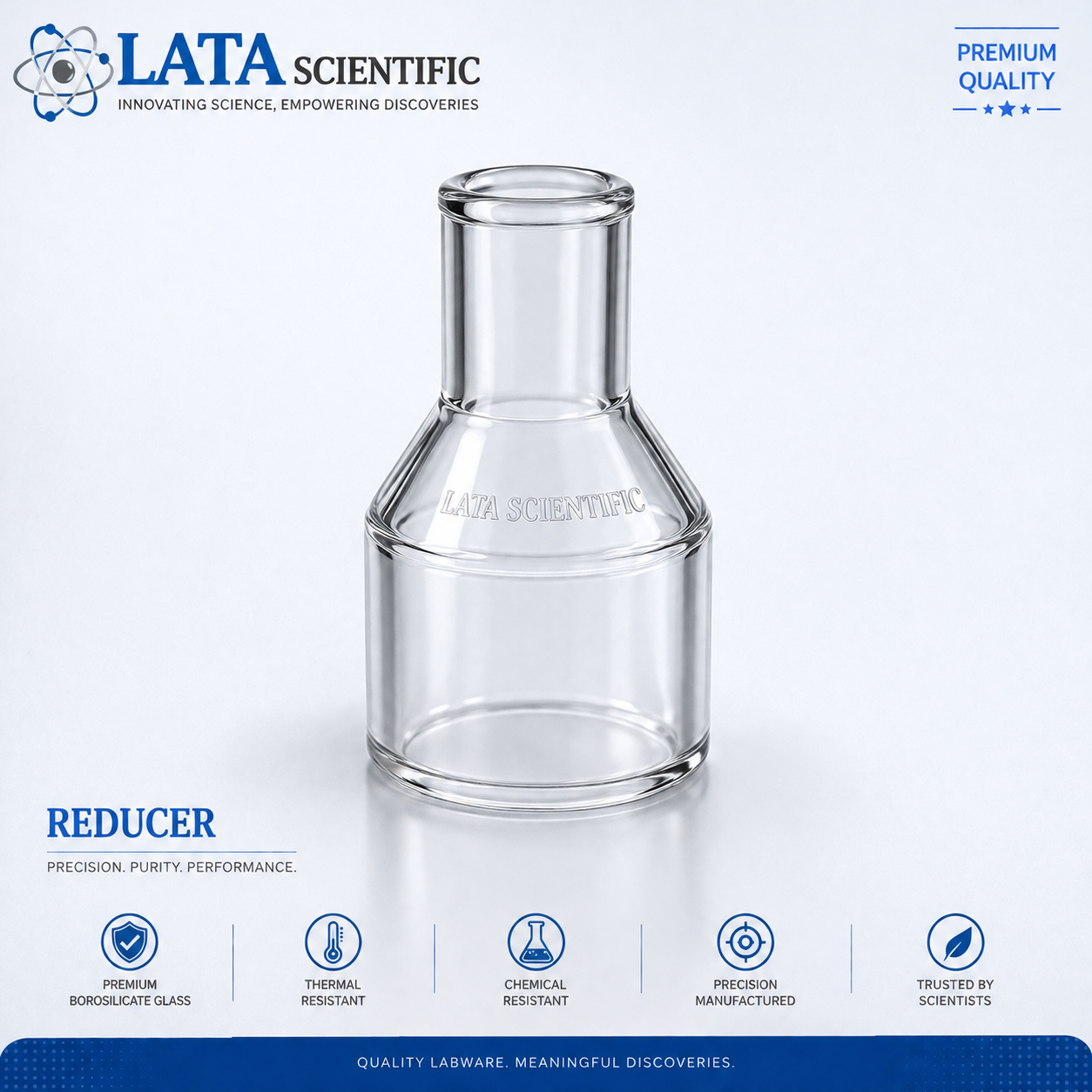

Pipe SectionBorosilicate glass reducer joining two different nominal bores

Reducer

Glass reducer, DN 25×15 to DN 600×300

View details

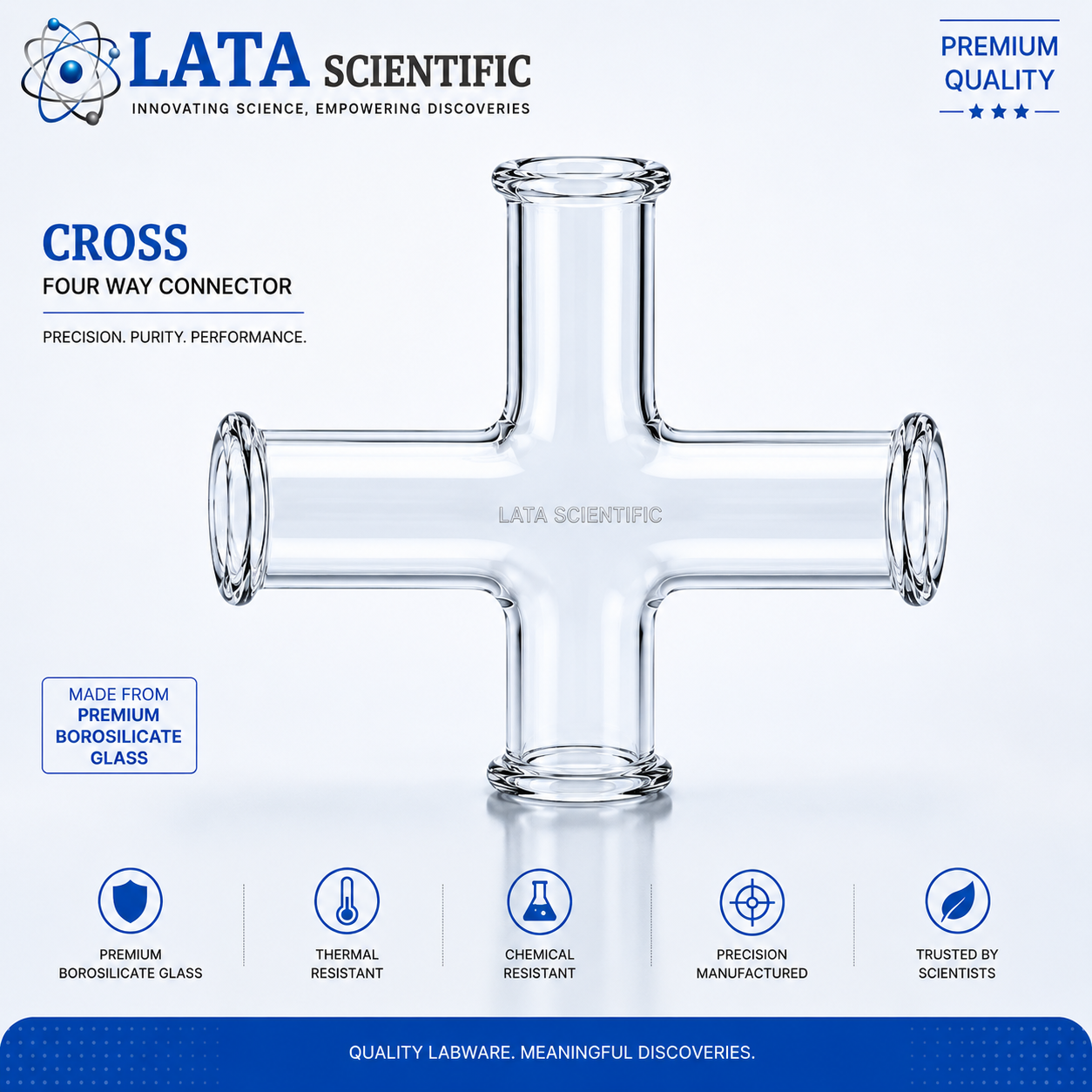

Pipe SectionBorosilicate glass four-way cross with equal branches

Cross

Glass equal cross, DN 15 to DN 100

View details

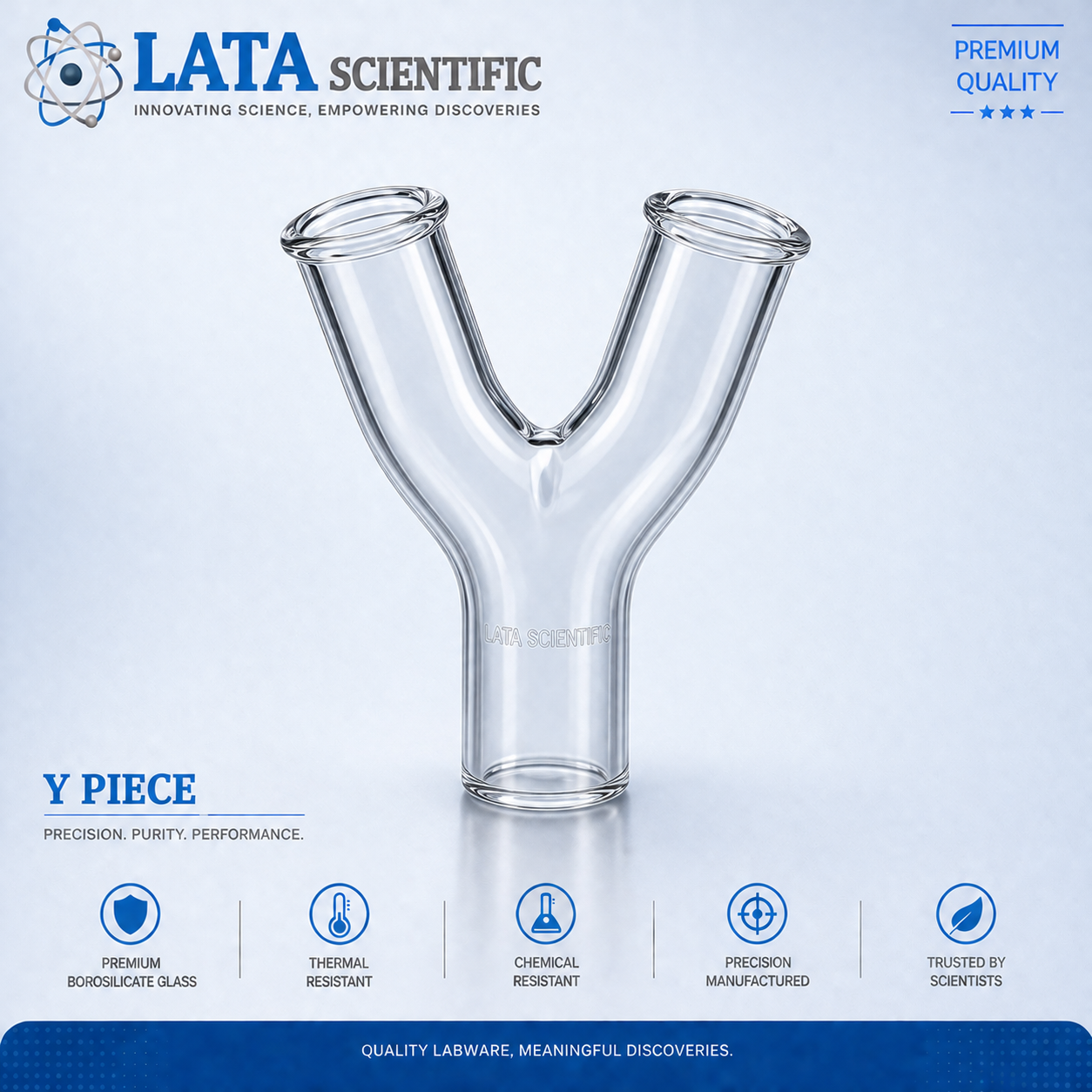

Pipe SectionBorosilicate glass Y piece merging two streams at an angle

Y Piece

Glass Y piece, DN 15 to DN 100

View details

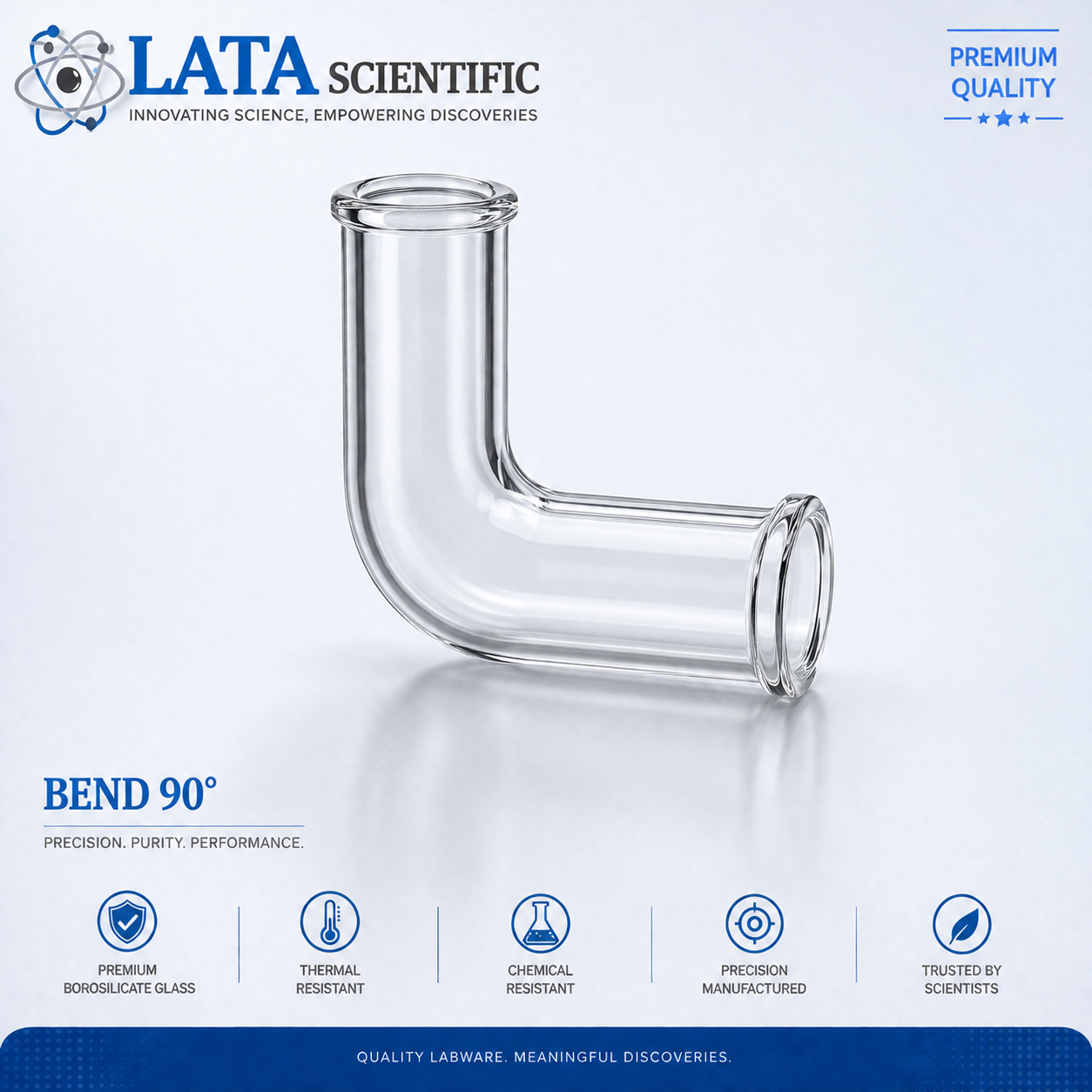

Pipe SectionBorosilicate glass 90 degree bend with beaded ends

Bend 90°

Glass 90° bend, DN 15 to DN 300

View details

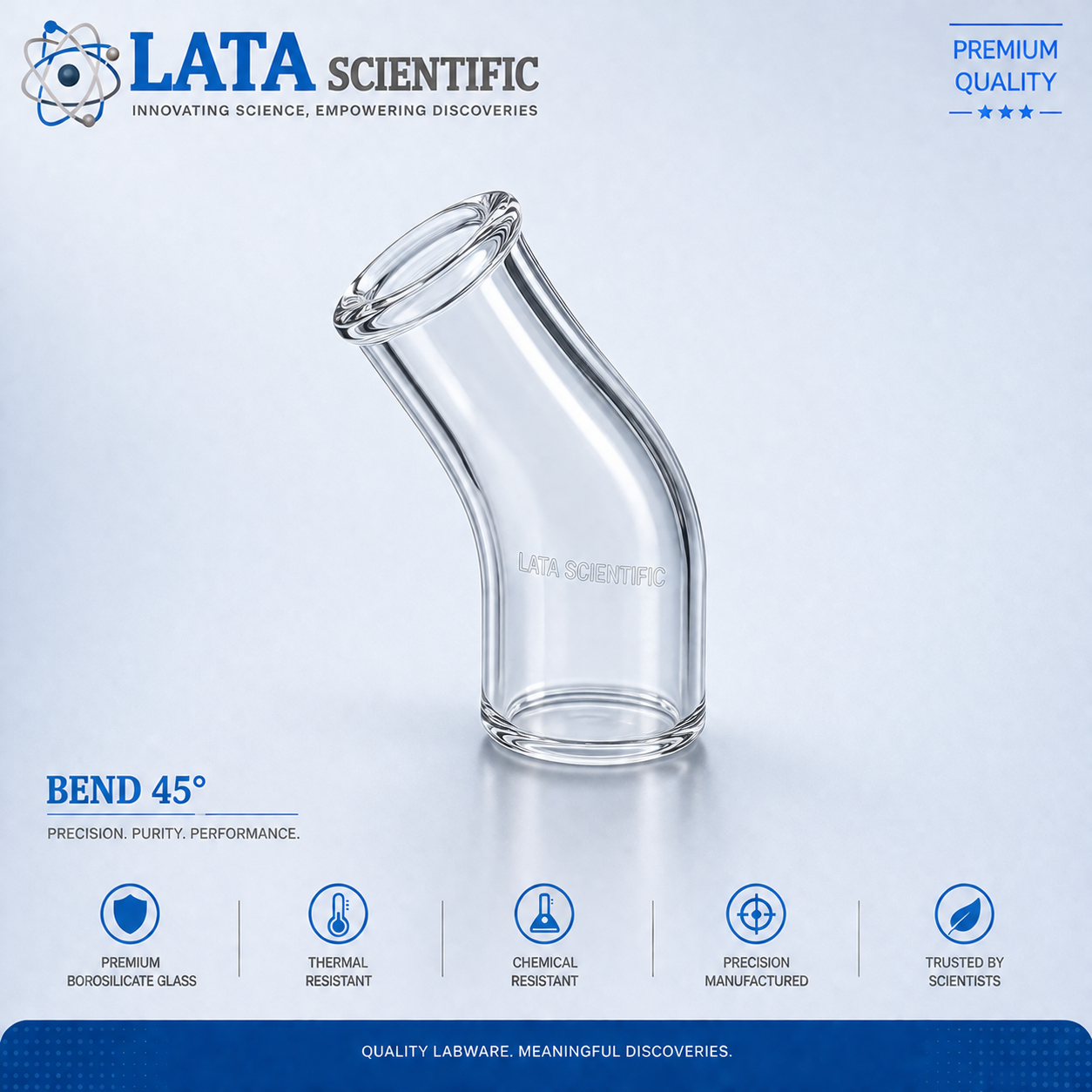

Pipe SectionBorosilicate glass 45 degree bend with beaded ends

Bend 45°

Glass 45° bend, DN 15 to DN 100

View details

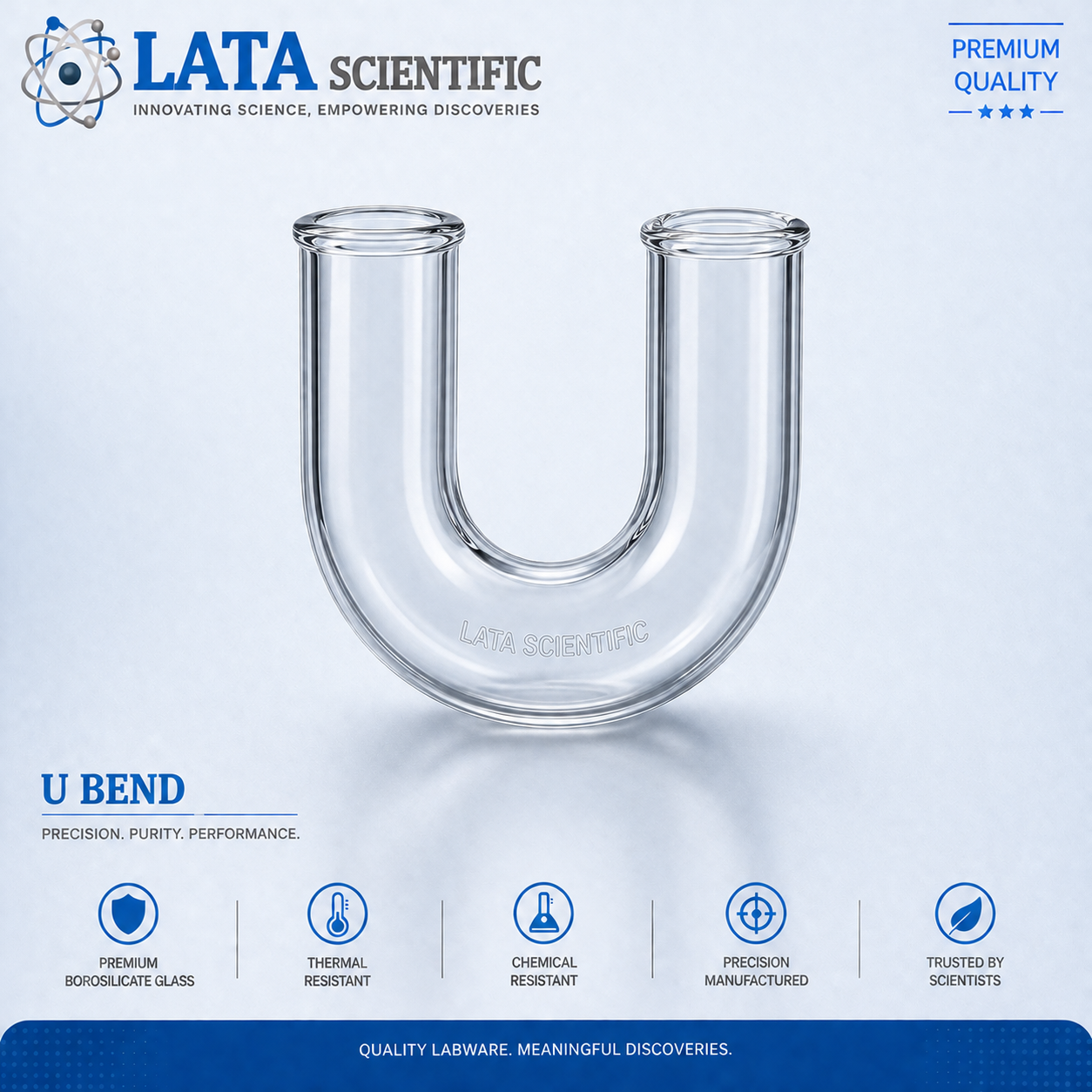

Pipe SectionBorosilicate glass U bend returning a line through 180 degrees

U Bend

Glass U bend, DN 15 to DN 80

View details

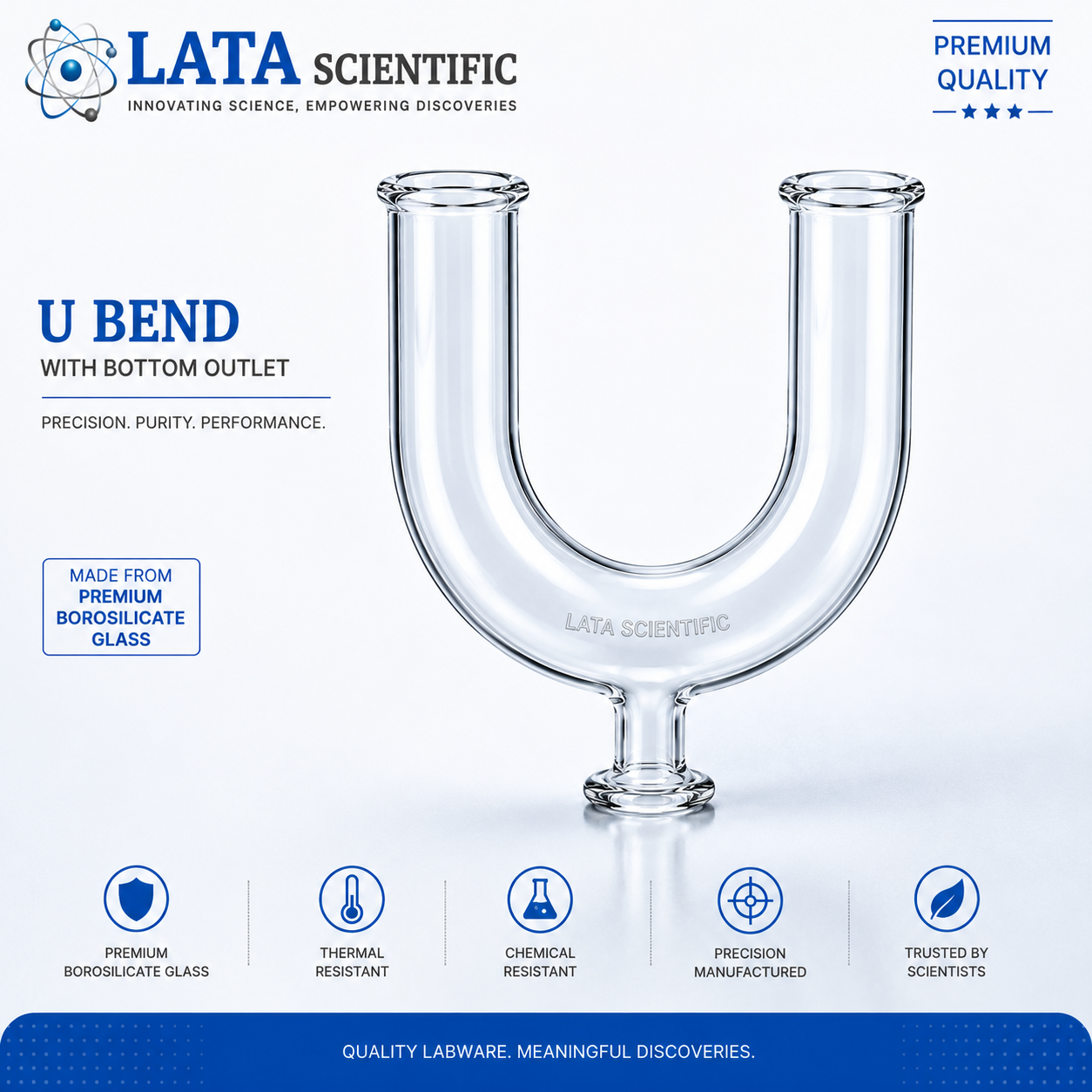

Pipe SectionBorosilicate glass U bend with a bottom outlet branch for draining

U Bend with Bottom Outlet

Glass U bend with drain branch, DN 15 to DN 80

View details

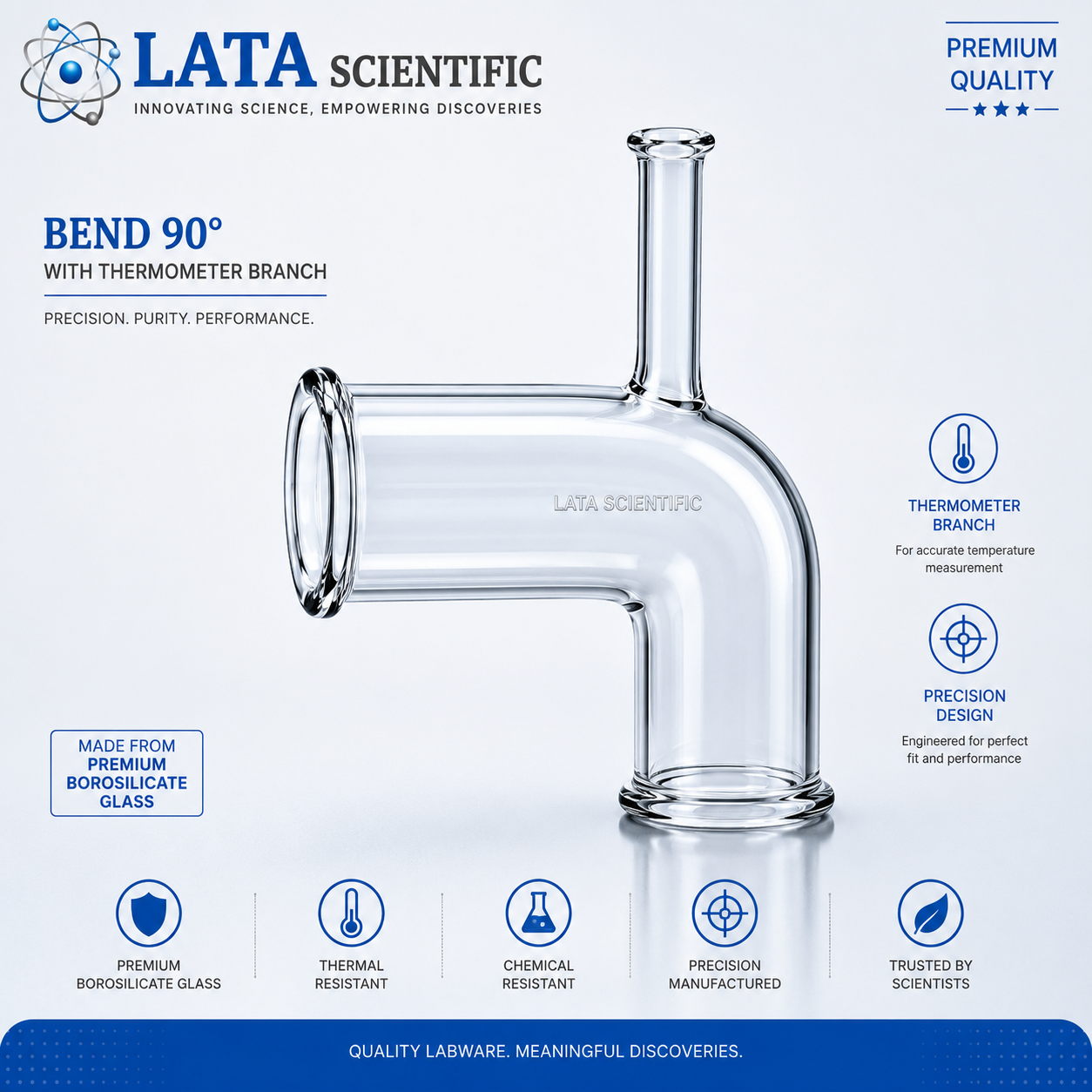

Pipe SectionBorosilicate glass 90 degree bend with a thermometer branch on the elbow

Bend 90° with Thermometer Branch

Glass 90° bend with DN 25 instrument branch, DN 40 to DN 300

View details

Jacketed Pipe Section

2 items

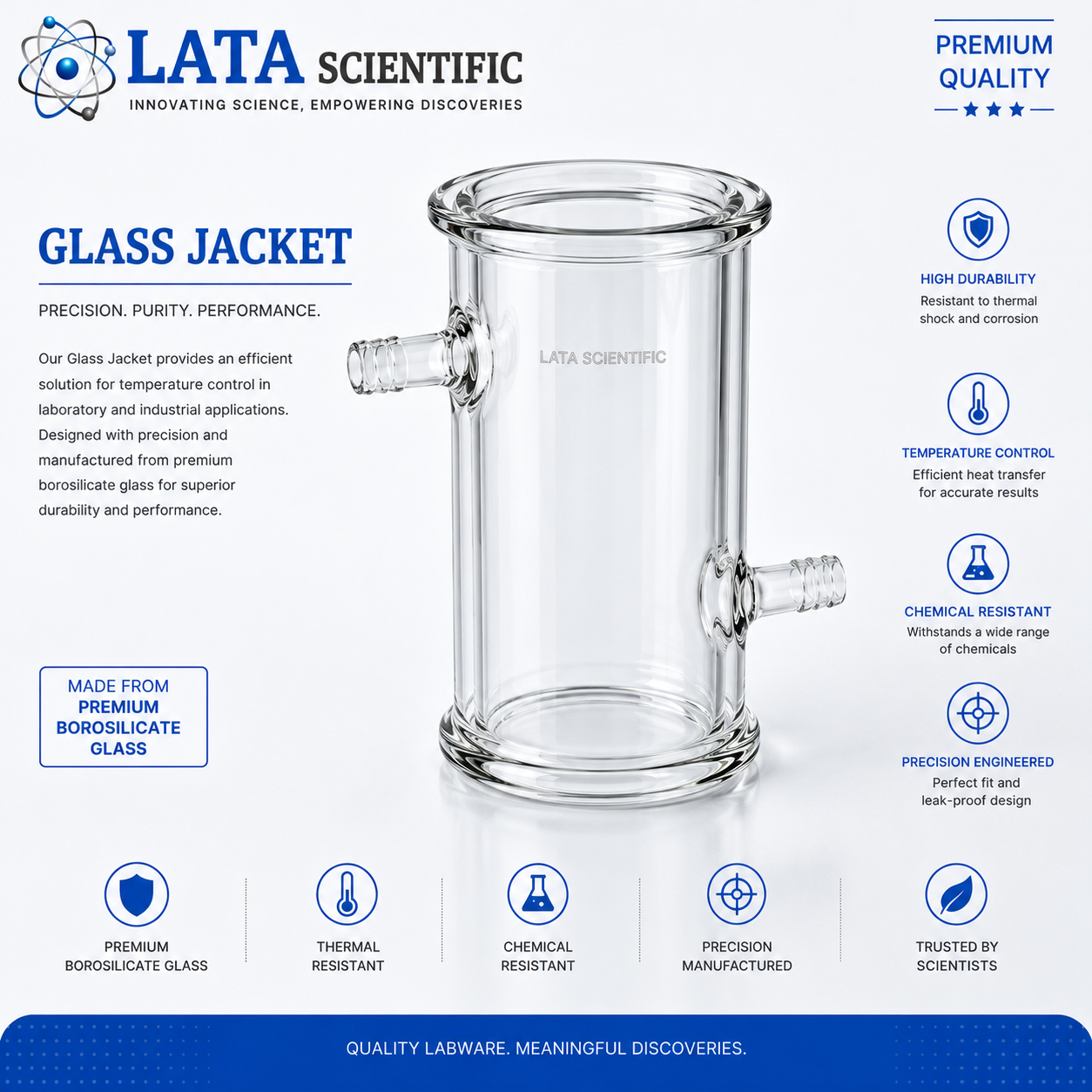

Jacketed Pipe SectionBorosilicate glass jacketed pipe section with glass outer jacket and service connections

Glass Jacket

Glass jacketed pipe section, DN 80 to DN 300

View details

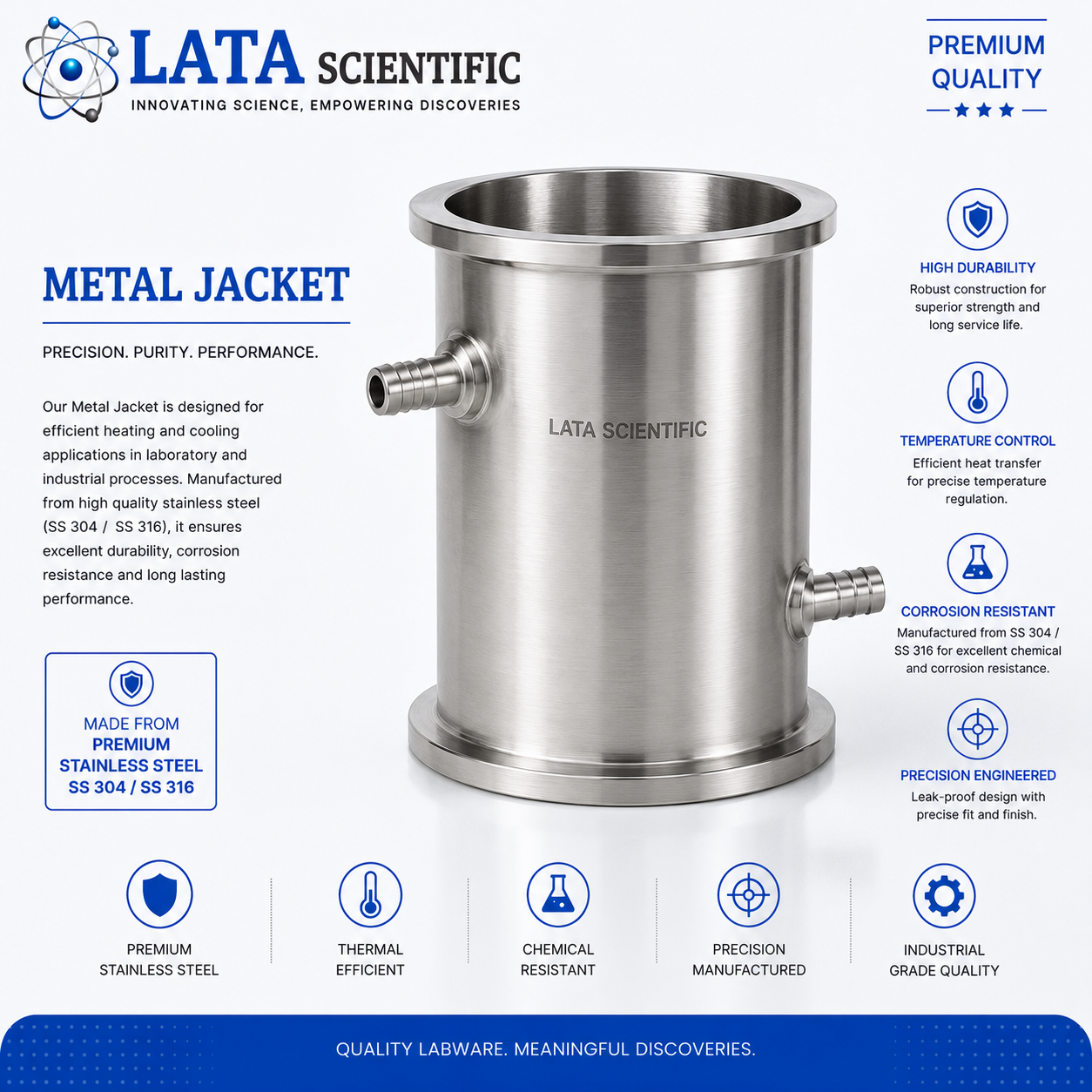

Jacketed Pipe SectionMetal jacketed borosilicate glass pipe section with service connections

Metal Jacket

Metal jacketed pipe section, DN 80 to DN 300

View details

Other Pipeline Components

4 items

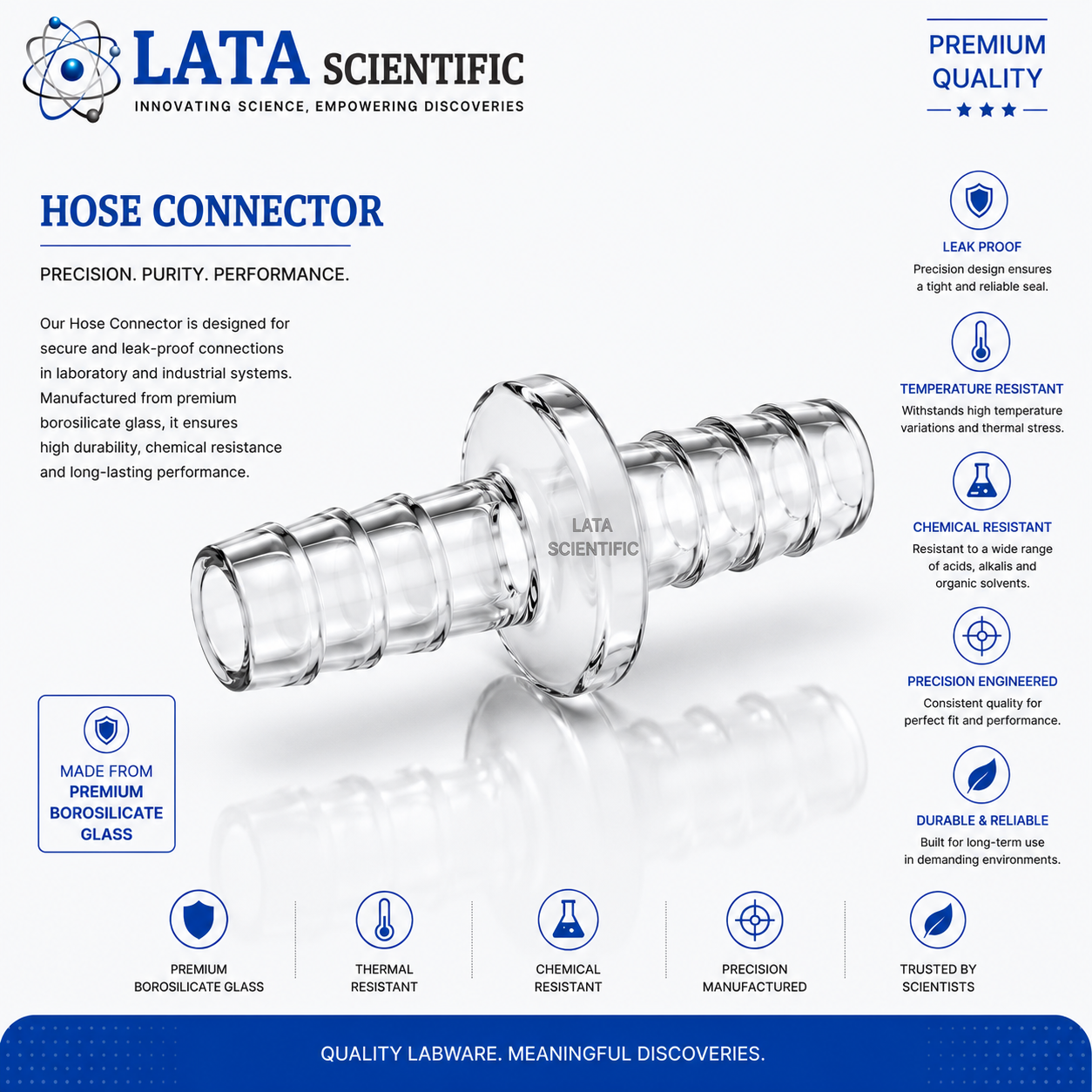

Other Pipeline ComponentsBorosilicate glass hose connector with barbed tail

Hose Connector

Glass hose connector, DN 15 to DN 40

View details

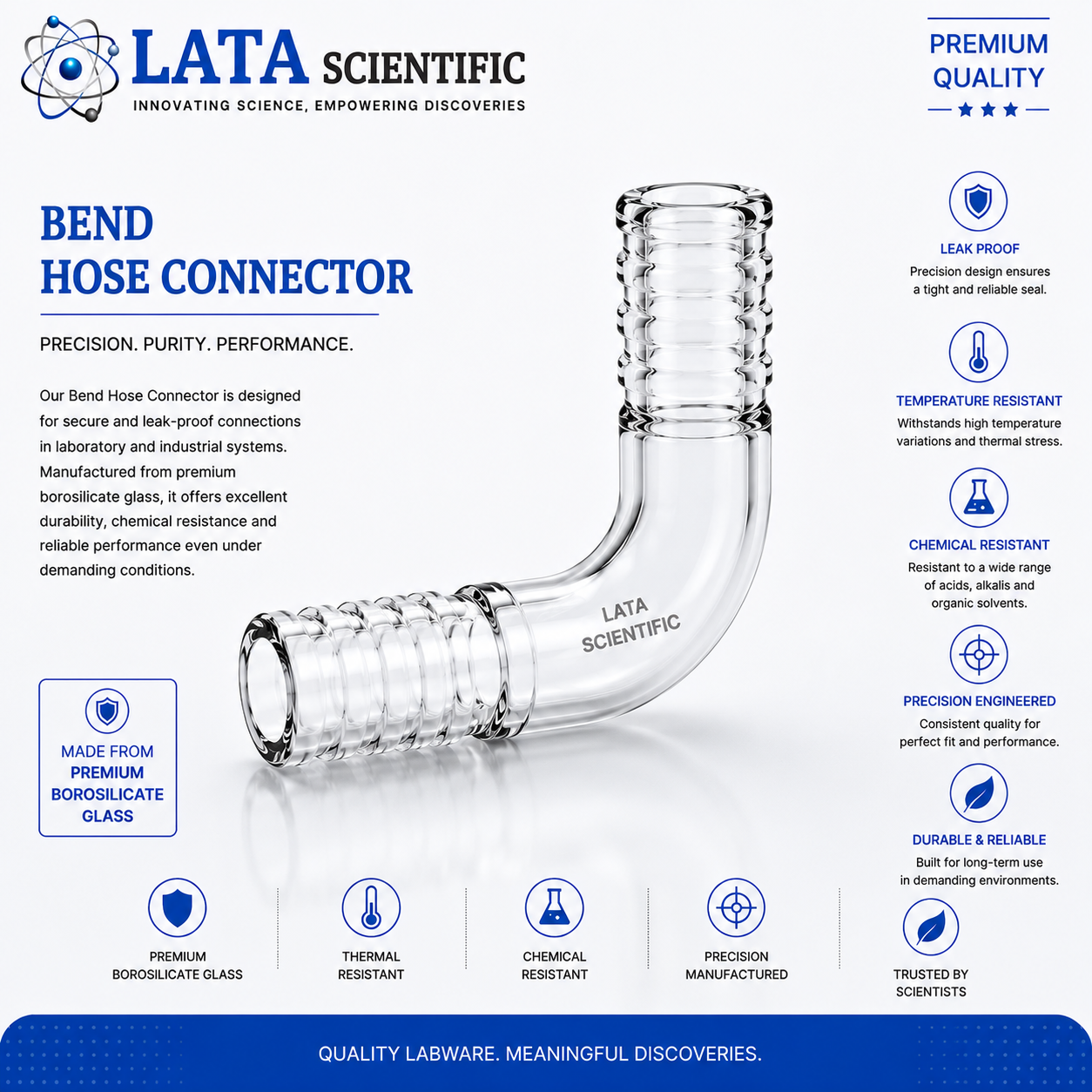

Other Pipeline ComponentsBorosilicate glass bend hose connector with angled barbed tail

Bend Hose Connector

Glass bend hose connector, DN 15 to DN 50

View details

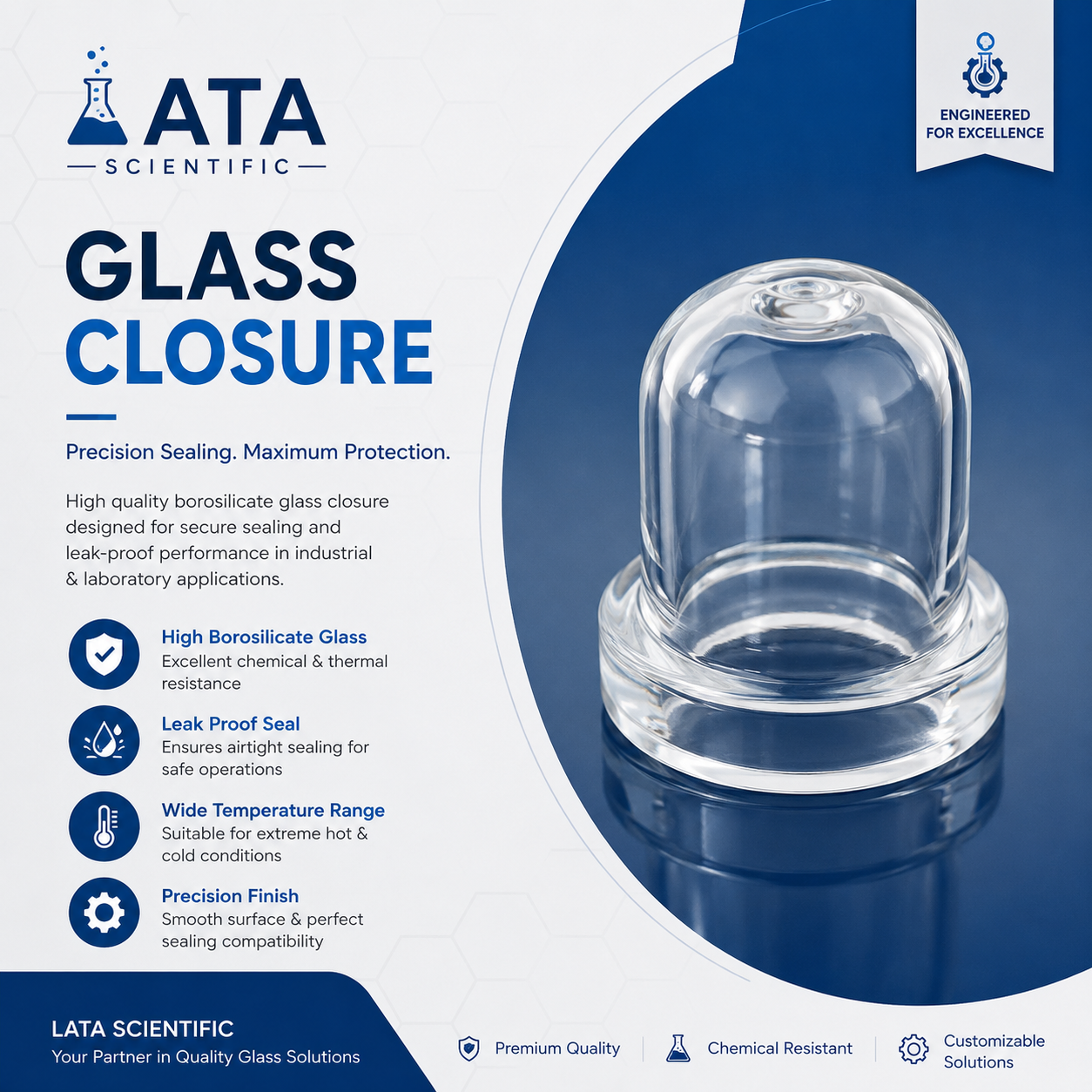

Other Pipeline ComponentsBorosilicate glass domed closure for ending a pipeline run

Closure

Glass closure, DN 15 to DN 300

View details
Other Pipeline ComponentsBorosilicate glass blind plate for sealing off a flange face

Blind

Glass blind, DN 15 to DN 300, 8–9 mm

View details

Made to Order

4 items

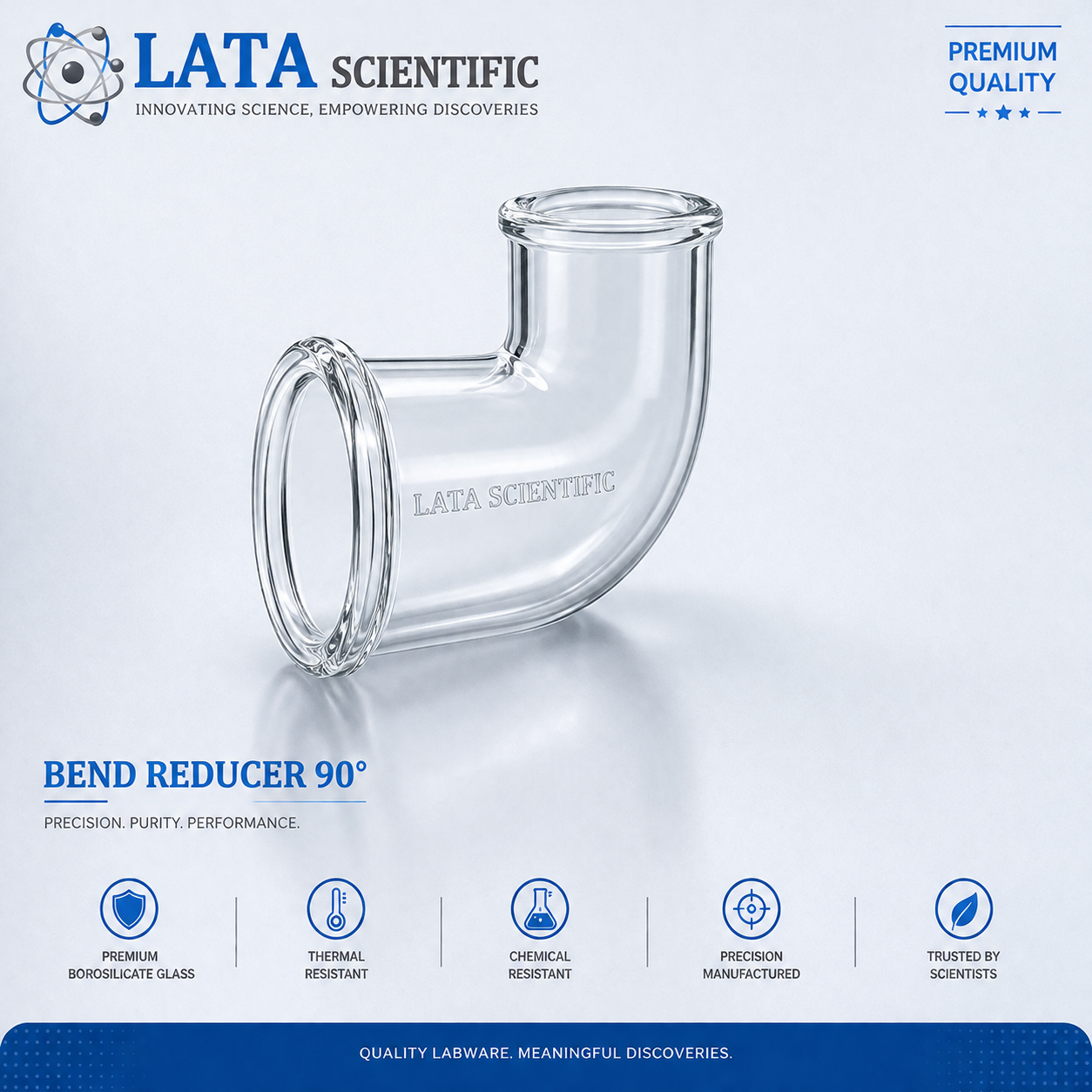

Made to OrderBorosilicate glass bend reducer 90°

Bend Reducer 90°

Glass 90° bend with an integral bore change

View details

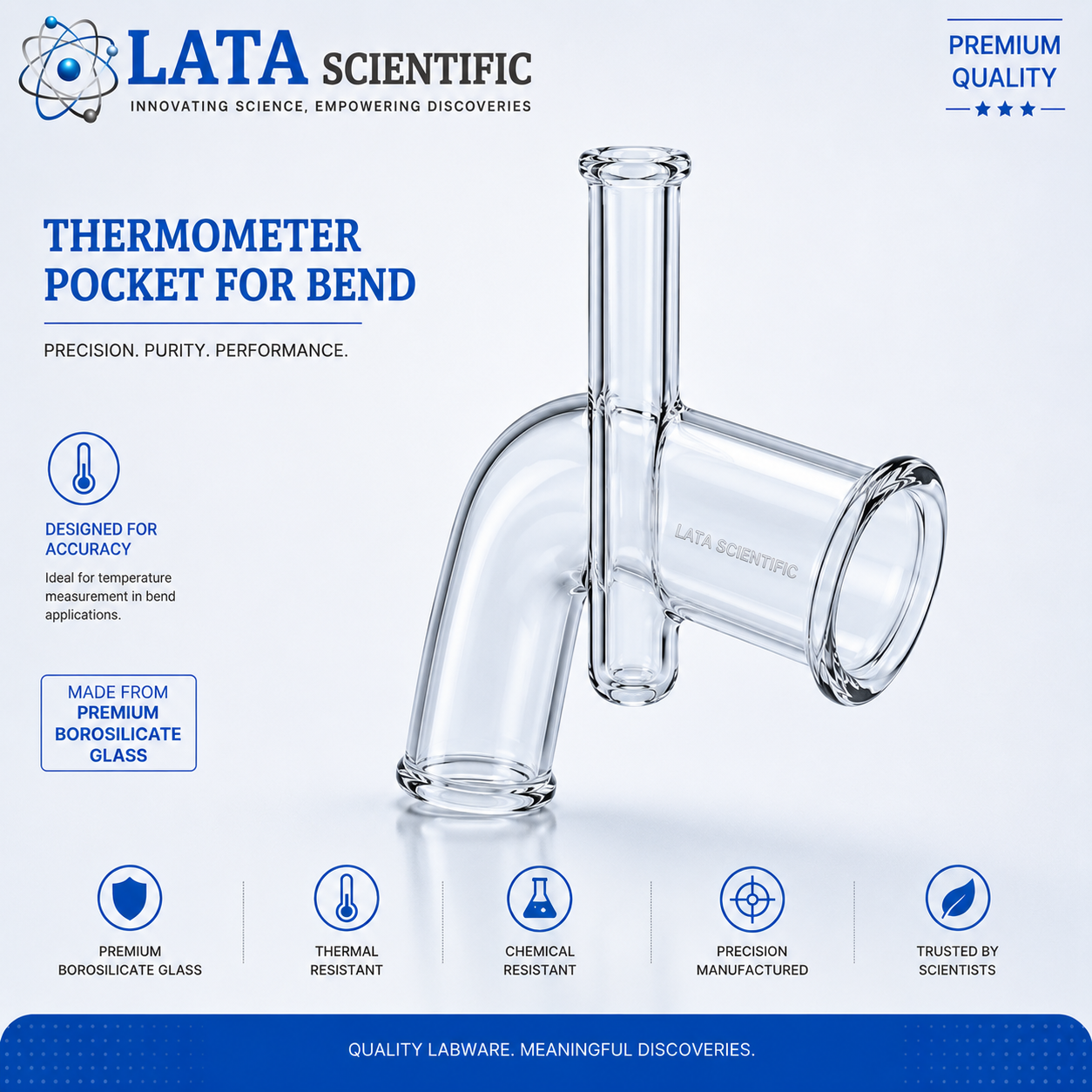

Made to OrderBorosilicate glass thermometer pocket for bend

Thermometer Pocket for Bend

Glass thermometer pocket for a bend branch

View details

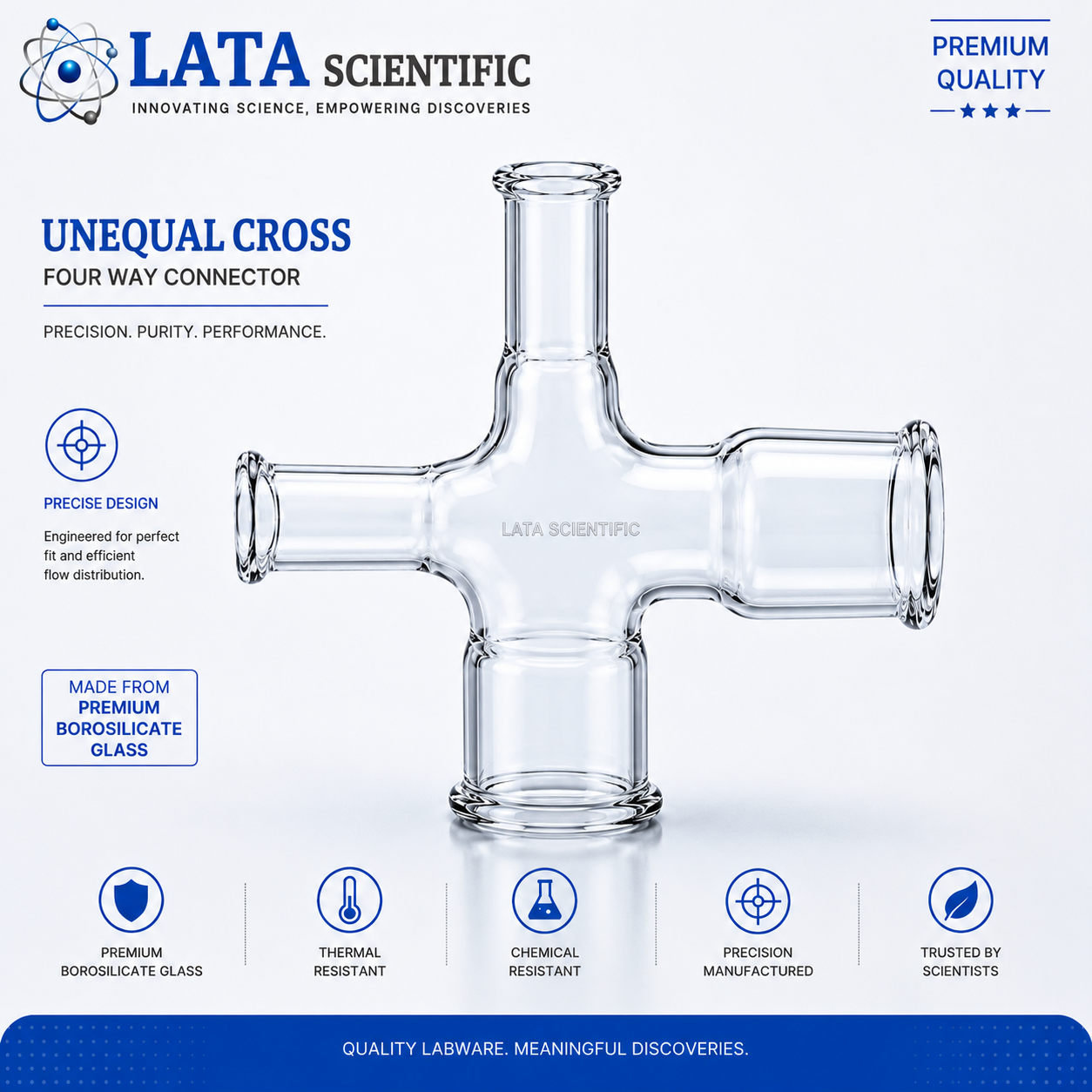

Made to OrderBorosilicate glass unequal cross

Unequal Cross

Glass four-way cross with reduced branches

View details

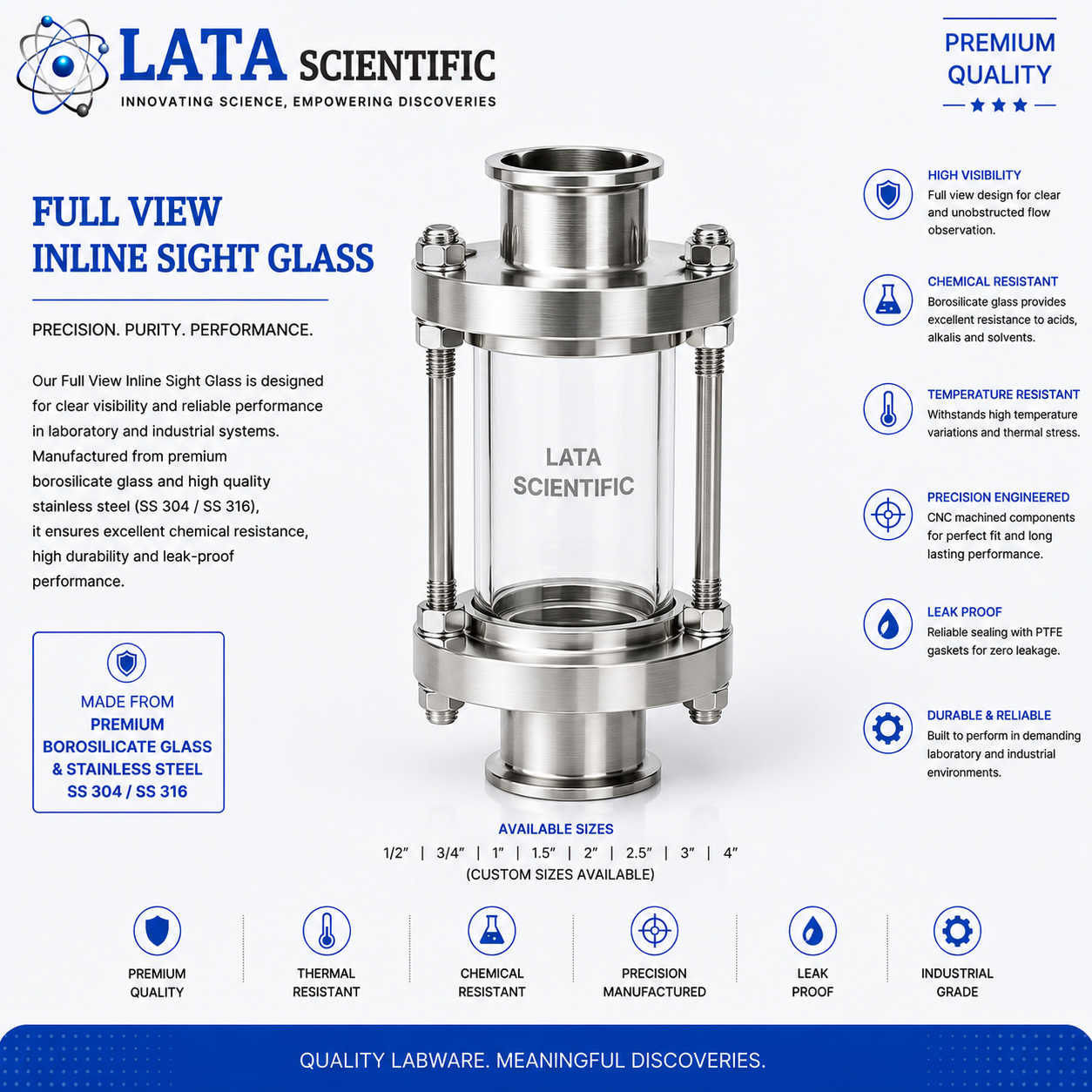

Made to OrderBorosilicate glass full view inline sight glass

Full View Inline Sight Glass

Full-bore inline glass sight section

View details
