Tubular Structure
Galvanised tube and cast iron fittings for building the structure that carries a glass plant — slidable fittings fixed with grub screws, so a structure can be modified later without hammering or welding.
Tubular Structure
7 productsStructure Tube
1 itemStructure Fittings
6 itemsStructure Fittings

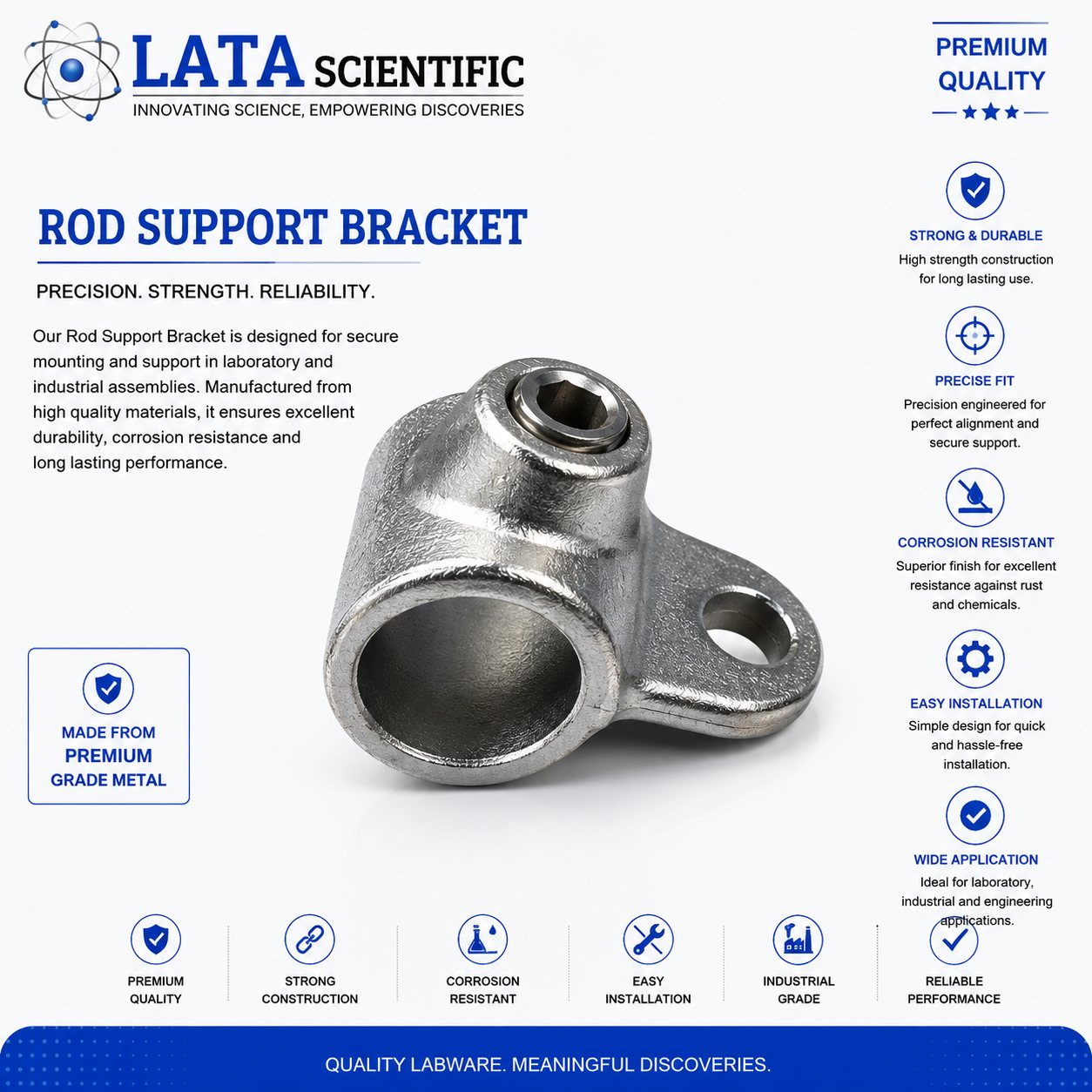

Structure Fittings

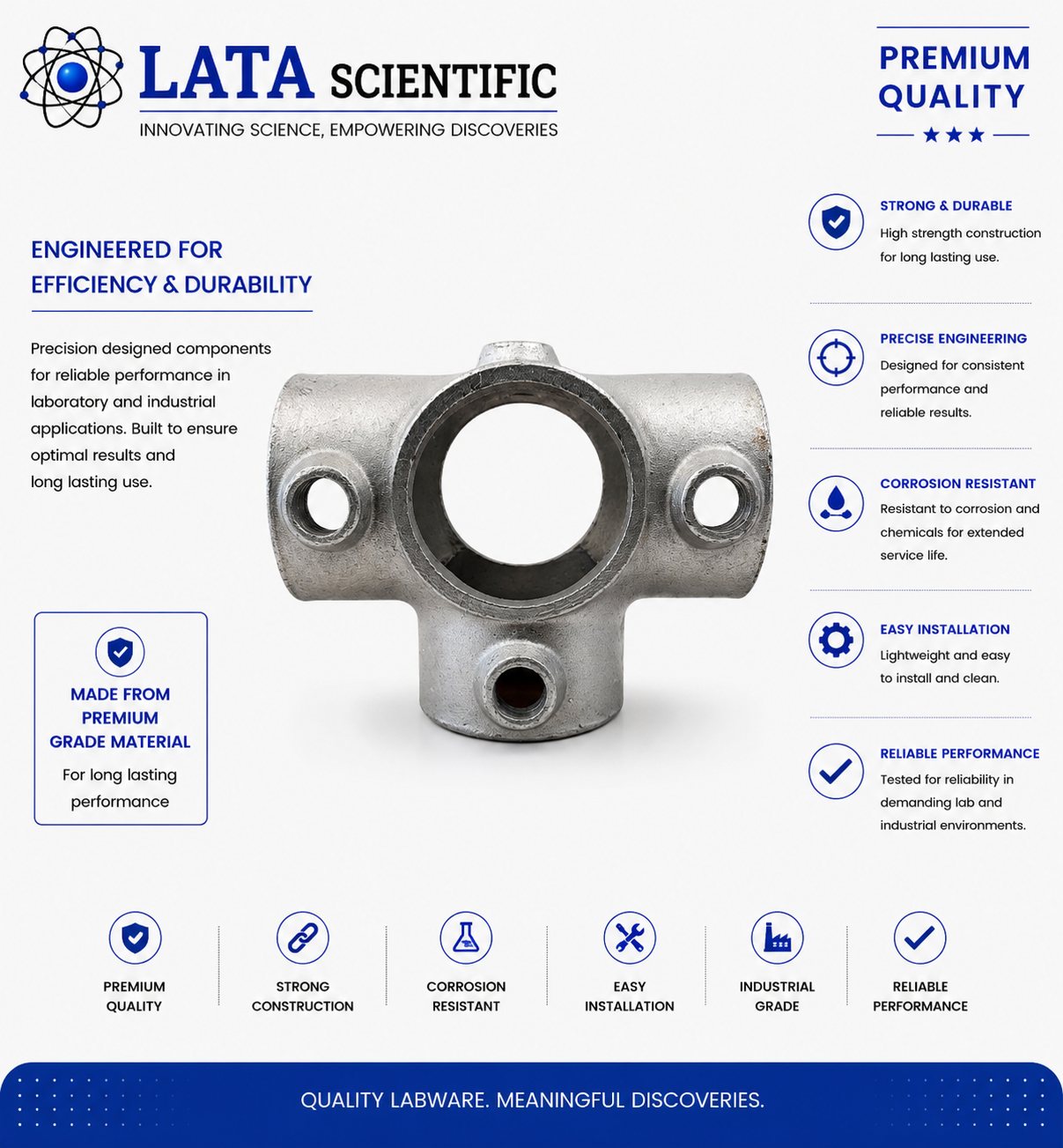

Structure Fittings

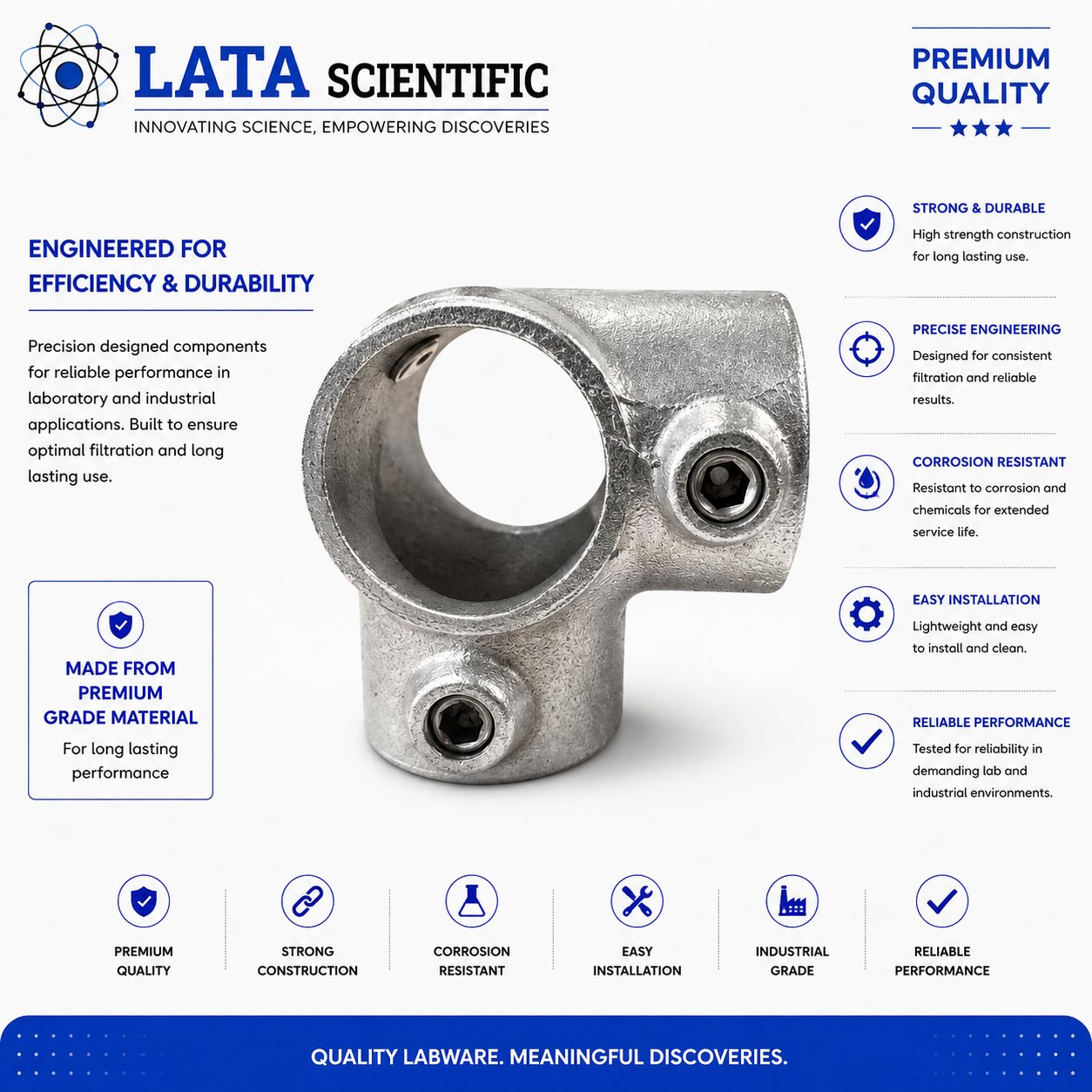

Structure Fittings

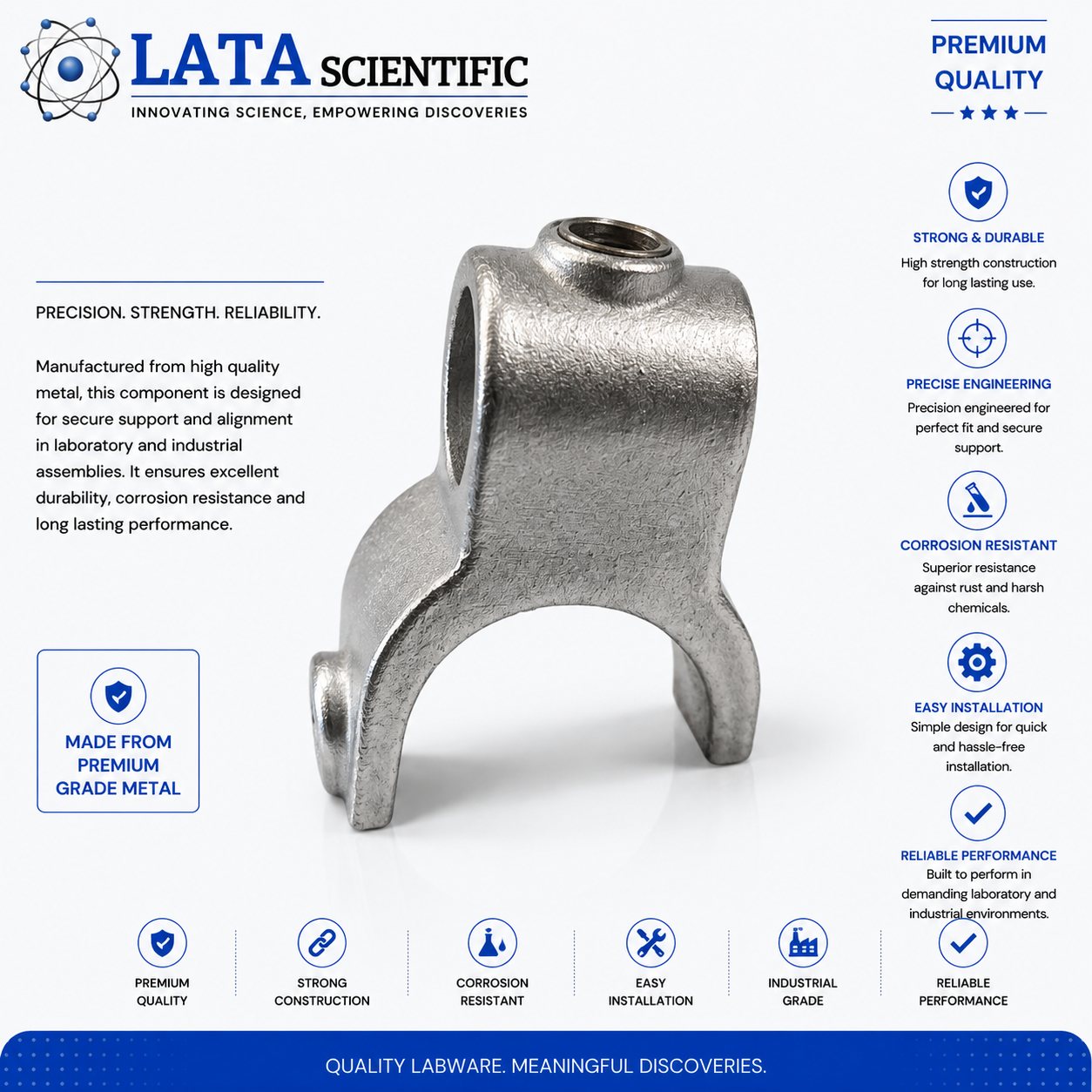

Structure Fittings

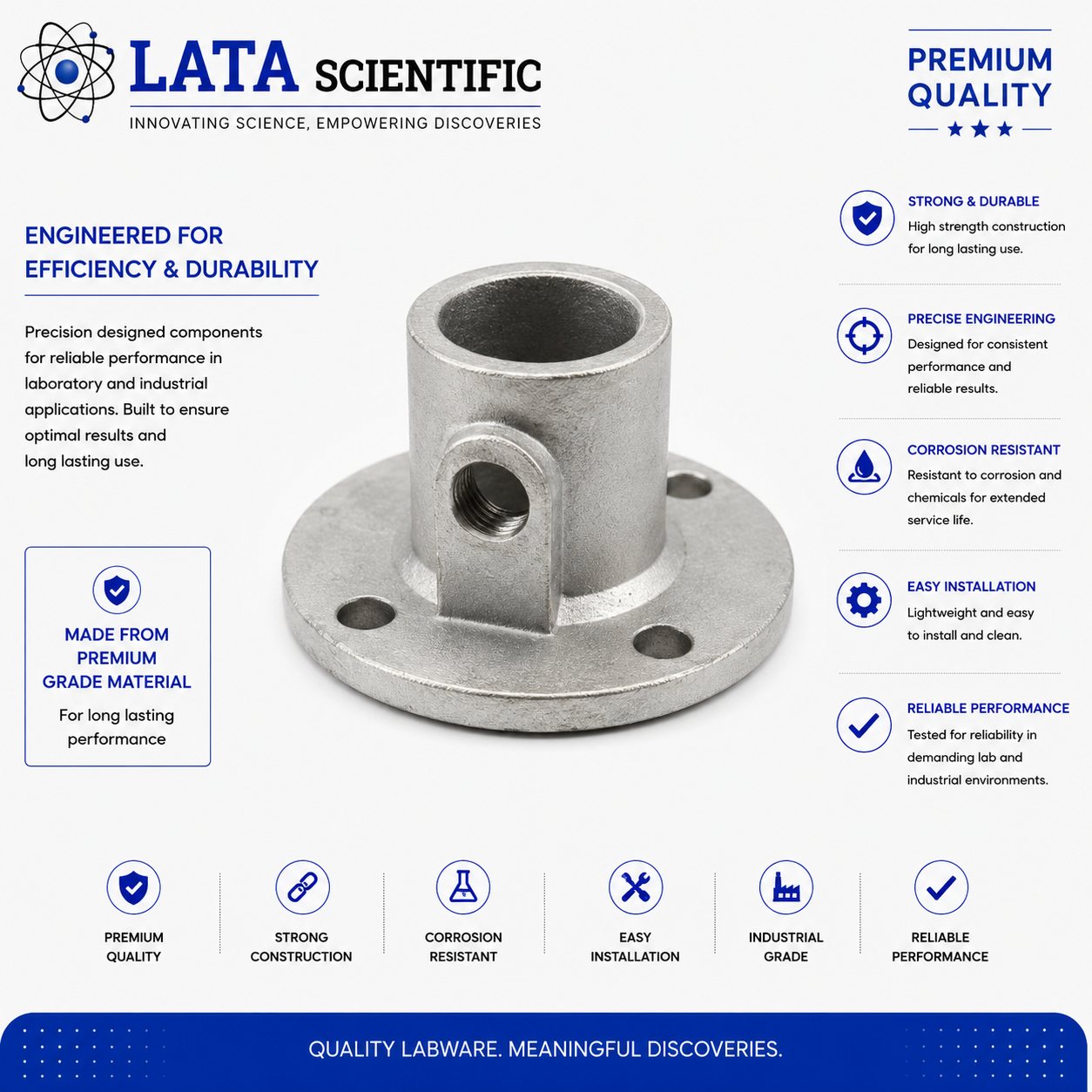

Structure Fittings
Engineering reference
Standards that apply across the tubular structure range.
These tables govern every item in this category. Product pages carry only their own dimensions.
| NB | Tube dia. | ID | OD | d |
|---|---|---|---|---|
| 25 | 32.5 | 35 | 45 | 1/2" |
| 30 | 42.5 | 45 | 55 | 1/2" |
| 40 | 48.3 | 51 | 61 | 1/2" |
| 50 | 60.3 | 63 | 73 | 1/2" |
All dimensions in mm, transcribed exactly from the catalogue page. d is the grub screw thread. These fittings are made of cast iron and are suitable for the galvanised tubes described in the tube size table.
| NB (inch) | NB (mm) | Outside dia. |
|---|---|---|
| 1/2" | 15 | 19.5 |
| 1" | 25 | 32.5 |
| 1 1/4" | 30 | 41.5 |
| 1 1/2" | 40 | 48.3 |
| 2" | 50 | 60.3 |
All dimensions in mm, transcribed exactly from the catalogue page. Tubes are “B” class galvanised.
| Structure dimension | NB 15 | NB 25 | NB 30 | NB 40 | NB 50 |
|---|---|---|---|---|---|
| For vertical installation — 2500 | — | 2500 | — | — | — |
| For vertical installation — 3000 | — | 3000 | 3000 | — | — |
| For vertical installation — 3500 | — | 3500 | 3500 | — | — |
| For vertical installation — 4000 | — | 4000 | 4000 | — | — |
| For vertical installation — 6000 | — | 6000 | 6000 | 6000 | 6000 |
| For frames — 400 | — | 365 | 355 | 345 | 335 |
| For frames — 500 | — | 465 | 455 | 445 | 435 |
| For frames — 600 | — | 565 | 555 | 545 | 535 |
| For frames — 800 | — | 765 | 755 | 745 | 735 |
| For frames — 1000 | — | 965 | 955 | 945 | 935 |
| For frames — 1200 | — | 1165 | 1155 | 1145 | 1135 |
| For frames — 1500 | — | 1465 | 1455 | 1445 | 1435 |
All dimensions in mm, transcribed exactly from the catalogue page. Cut tubes are supplied with rubber plugs at both ends. Catalogue reference is formed as TBG (NB mm / cut length) — for example TBG 25/365. The catalogue also tabulates a “for supports” set of cut lengths (400 to 1500 structure dimension); its column alignment cannot be read reliably from the supplied page, so it is not reproduced here — ask us for the support cut length against your NB and structure dimension.
| DN | Recommended tube size NB (mm) | Minimum structure size, depth × width |
|---|---|---|
| 80 | 25 | 500 × 500 |
| 100 | 25 | 500 × 500 |
| 150 | 25, 30 | 600 × 600 |
| 225 | 30 | 800 × 800 |
| 300 | 30 | 800 × 800 |
| 400 | 30 | 1000 × 1000 |
| 450 | 30, 40 | 1000 × 1000 |
| 600 | 40, 50 | 1200 × 1200 |
All dimensions in mm, transcribed exactly from the catalogue page.
| Size (litres) | Heating mantle — tube NB | Heating mantle — min. structure | Heating bath — tube NB | Heating bath — min. structure | Vessel holder — tube NB | Vessel holder — min. structure |
|---|---|---|---|---|---|---|
| 20 | 25 | 400 × 600 | 25 | 500 × 600 | 25 | 500 × 600 |
| 50 | 25 | 600 × 800 | 25 | 600 × 800 | 25 | 600 × 800 |
| 100 | 25, 30 | 800 × 800 | 25, 30 | 800 × 1000 | 25, 30 | 1000 × 1000 |
| 200 | 30 | 800 × 1000 | 30 | 800 × 1200 | 30 | 1000 × 1000 |
All dimensions in mm, transcribed exactly from the catalogue page. Structure size is given as depth × width. The catalogue prints these as three separate tables; they are combined here because they share the same size column.
