Stainless steel double window sight flow indicator with investment cast body and two glass windows
Double Window Sight Flow Indicators

SS Double Window Sight Flow Indicator

Stainless double window, 25NB to 400NB

Stainless steel double window sight flow indicator — investment cast to 150NB, fabricated from 200NB. 25NB to 400NB, face to face 127 mm to 850 mm.

Request a quotation Full technical data and dimensions Request the datasheet
At a glance
Product typeDouble window sight flow indicator
Body materialCF8 / CF8M / CF3M / CG3M cast stainless steel
ConstructionInvestment casting up to 150NB; fabricated design from 200NB
GlassToughened borosilicate 3.3 or soda lime, 2 off
GasketPTFE, 4 off
FastenersA2 / CF8
Size range25NB to 400NB
Face to face127 mm to 850 mm, tolerance ±3 mm

Product overview

What it does, and where it fits.

The standard stainless double window sight flow indicator: two opposed toughened glass windows in a cast stainless body, giving a large view area and through-illumination viewing of the flow.

Up to 150NB the body is an investment casting, which gives a clean internal form and good surface finish with no weld seams in the flow path. From 200NB upward the body is fabricated. Both carry the same PTFE gaskets and CF8/CF8M/CF3M/CG3M material options.

Face-to-face is compact through the smaller sizes — 127 mm at 25NB to 267 mm at 150NB — then steps up to 520 mm at 200NB where the fabricated construction begins.

Features

Built into every unit.

  • Investment cast body up to 150NB; fabricated design from 200NB
  • Two toughened borosilicate 3.3 or soda lime windows for a large view area
  • CF8 / CF8M / CF3M / CG3M cast stainless body
  • 25NB to 400NB, face to face 127 mm to 850 mm
  • Custom-made designs fabricated on request

Benefits

Why it earns its place in the line.

  • Investment cast body has no weld seams in the flow path up to 150NB
  • Compact face-to-face in the smaller sizes — easy retrofit
  • Two opposed windows let you look through the fluid against a light — far clearer than a single reflecting port
  • Robust flanged body drops straight into an existing line
  • Glass and gaskets replaceable in situ without cutting the pipework
  • Mountable in any orientation

Applications & industries

Where it is specified.

Typical applications

  • Confirming that a line is actually flowing
  • Watching for colour change, cloudiness or phase separation
  • Spotting entrained gas or cavitation at a pump
  • Verifying that a line has drained before maintenance

Industries served

  • Chemical processing
  • Pharmaceutical
  • Dairy & food
  • Water & effluent treatment
  • Agrochemicals
  • Paper & bleaching
  • Petrochemical
  • Distillation & solvent recovery

Technical data

Specification for SS Double Window Sight Flow Indicator.

Figures below are for this product only — every item in the range carries its own dimension table.

SS Double Window Sight Flow Indicator — technical specification
Product typeDouble window sight flow indicator
Body materialCF8 / CF8M / CF3M / CG3M cast stainless steel
ConstructionInvestment casting up to 150NB; fabricated design from 200NB
GlassToughened borosilicate 3.3 or soda lime, 2 off
GasketPTFE, 4 off
FastenersA2 / CF8
Size range25NB to 400NB
Face to face127 mm to 850 mm, tolerance ±3 mm
Flange standardANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 also available
TestingHydro tested to the standard hydro test pressure chart
SS Double Window Sight Flow Indicator — dimensional table
SizeOD (±3)PCDH (No.)H dia.L (±3)
25NB10879416127
40NB12798416165
50NB152121419178
80NB191152419203
100NB229191819229
150NB279241822267
200NB343298822520
250NB4063621225600
300NB4834321225650
350NB5334761229760
400NB5975401629850

All dimensions in mm. Flange drilling to ANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 drilling are also available — see the flange standards table.

Material specification
No.DescriptionQty.Material
1Body1CF8/CF8M/CF3M/CG3M
2Toughened glass2Borosilicate 3.3 / soda lime
3Gasket4PTFE
4Connectors2CF8/CF8M/CF3M/CG3M
5Fasteners—A2/CF8

Available on request

  • Custom-made design fabricated on request
  • Different flange standards
  • Rotary wheel and flapper type designs

Exploded view

Every part, in assembly order.

Item numbers match the material specification table above.

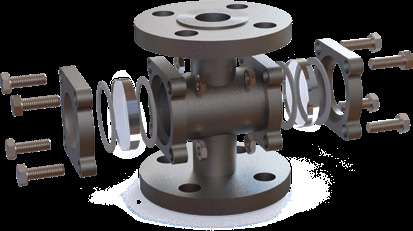

Exploded assembly view of the SS Double Window Sight Flow Indicator showing numbered components

FAQ

Questions we are asked about this item.

Up to 150NB the body is an investment casting, which gives a clean internal form with no weld seams. Above that the casting becomes impractical, so bodies are fabricated.

That is the change from cast to fabricated construction at 200NB. Take the figure from the table rather than interpolating.

Yes — rotary wheel and flapper type designs are available, which show flow velocity as well as presence.
