SS Allen Key with T-Bush Tubular Sight Flow Indicator
Stainless allen key with PTFE T-bush, 15NB to 400NB
Allen key tubular sight flow indicator with PTFE T-bushes isolating the flanges — all wetted parts PTFE and glass only, without the cost of a full lining.
| Product type | Allen key with T-bush tubular sight flow indicator |
|---|---|
| Flange material | CF8 / CF8M / CF3M cast stainless steel, 2 off |
| T-bush | PTFE, 2 off |
| Glass tube | Borosilicate 3.3, 1 off |
| Gasket | PTFE, 4 off |
| Tie rod | A2 / CF8 / CF8M |
| Fasteners | A2 / CF8 |
| Safety shield | Polycarbonate / acrylic, provided on request |
Product overview
What it does, and where it fits.
A PTFE T-bush is a top-hat sleeve that sits between the glass tube and the flange, isolating the metal from the fluid at the one place a plain tubular unit is vulnerable. The result is that all wetted parts are PTFE and glass only, achieved without lining the whole flange.
That makes this a cost-effective design for corrosive fluids: it gives the chemical resistance of a lined unit at a lower price, and because the bush is a discrete component, repair and maintenance can be carried out on site.
Flanges are cast stainless in CF8, CF8M or CF3M. Face-to-face is 185 mm across most of the range, rising to 215 mm at 400NB, and custom lengths up to 1500 mm are available.
Features
Built into every unit.
- PTFE T-bushes isolate the flanges — all wetted parts are PTFE and glass only
- Cost effective design for corrosive fluids
- Repair and maintenance can be easily carried out on site
- Cast stainless flanges — CF8, CF8M or CF3M
- Custom face to face lengths up to 1500 mm available
Benefits
Why it earns its place in the line.
- Full fluoropolymer wetted path without the cost of a lined flange
- T-bush is a replaceable component — site repairable
- 360° visibility over the whole length — sees what a two-window unit misses
- Glass tube and gaskets replaceable on site without cutting the pipework
- Short face to face across the size range makes retrofit straightforward
Applications & industries
Where it is specified.
Typical applications
- Corrosive process streams on a budget
- Duties where site maintenance capability matters
- Watching for settling solids, stratification or a moving interface
- Confirming complete drainage of a line before maintenance
Industries served
- Chemical processing
- Pharmaceutical
- Dairy & food
- Water & effluent treatment
- Agrochemicals
- Paper & bleaching
- Petrochemical
- Distillation & solvent recovery
Technical data
Specification for SS Allen Key with T-Bush Tubular Sight Flow Indicator.
Figures below are for this product only — every item in the range carries its own dimension table.
| Product type | Allen key with T-bush tubular sight flow indicator |
|---|---|
| Flange material | CF8 / CF8M / CF3M cast stainless steel, 2 off |
| T-bush | PTFE, 2 off |
| Glass tube | Borosilicate 3.3, 1 off |
| Gasket | PTFE, 4 off |
| Tie rod | A2 / CF8 / CF8M |
| Fasteners | A2 / CF8 |
| Safety shield | Polycarbonate / acrylic, provided on request |
| Size range | 15NB to 400NB |
| Face to face | 185 mm to 215 mm standard; up to 1500 mm on request |
| Wetted parts | PTFE and borosilicate glass only |
| Flange standard | ANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 also available |
| Size | OD (±3) | PCD | H (No.) | H dia. | L (±3) |
|---|---|---|---|---|---|
| 15NB | 90 | 60 | 4 | 16 | 185 |
| 20NB | 100 | 70 | 4 | 16 | 185 |
| 25NB | 108 | 79 | 4 | 16 | 185 |
| 40NB | 127 | 98 | 4 | 16 | 185 |
| 50NB | 152 | 121 | 4 | 19 | 185 |
| 65NB | 180 | 140 | 4 | 19 | 185 |
| 80NB | 191 | 152 | 4 | 19 | 185 |
| 100NB | 229 | 191 | 8 | 19 | 185 |
| 150NB | 279 | 241 | 8 | 22 | 185 |
| 200NB | 343 | 298 | 8 | 22 | 195 |
| 250NB | 406 | 362 | 12 | 25 | 200 |
| 300NB | 483 | 432 | 12 | 25 | 205 |
| 350NB | 533 | 476 | 12 | 29 | 210 |
| 400NB | 597 | 540 | 16 | 29 | 215 |
All dimensions in mm. Flange drilling to ANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 drilling are also available — see the flange standards table.
| No. | Description | Qty. | Material |
|---|---|---|---|
| 1 | Flange | 2 | CF8/CF8M/CF3M |
| 2 | T-bush | 2 | PTFE |
| 3 | Gasket | 4 | PTFE |
| 4 | Glass tube | 1 | Borosilicate 3.3 |
| 5 | Tie rod | — | A2/CF8/CF8M |
| 6 | Fasteners | — | A2/CF8 |
| 7 | Safety shield* | 1 | Polycarbonate / acrylic |
Available on request
- Custom face to face lengths up to 1500 mm
- Safety shield (polycarbonate / acrylic) on request
- Different flange standards

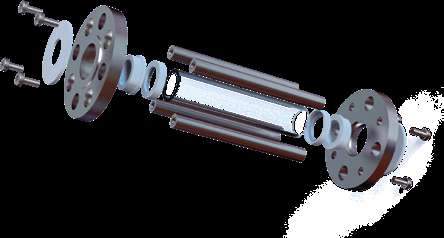

Exploded view
Every part, in assembly order.
Item numbers match the material specification table above.
FAQ
Questions we are asked about this item.
Both give a PTFE and glass wetted path. The T-bush version is cheaper and site-repairable; the fully lined version protects the whole flange body and is the better choice for the most aggressive duties or where permeation is a concern.
Yes — the catalogue notes that repair and maintenance can be easily carried out at site, which is one of the main reasons to choose this design.
