Mild steel jacketed double window sight flow indicator with jacket body and two glass windows
Double Window Sight Flow Indicators

MS Jacketed Double Window Sight Flow Indicator

Mild steel jacketed double window, 25NB to 400NB

Mild steel jacketed double window sight flow indicator — the same jacketed viewing chamber at lower cost where stainless is not required. 25NB to 400NB.

Request a quotation Full technical data and dimensions Request the datasheet
At a glance
Product typeJacketed double window sight flow indicator
Body materialMS
Jacket materialMS
GlassToughened borosilicate 3.3 or soda lime, 2 off
GasketPTFE, 4 off
FastenersG.I. / A2 / CF8
Size range25NB to 400NB
Face to face160 mm to 1400 mm, tolerance ±3 mm

Product overview

What it does, and where it fits.

Identical in function and dimensions to the stainless jacketed model, this version uses a mild steel body and jacket. On duties where the process does not attack carbon steel — many solvents, oils, and warm non-aqueous products — that is a substantial saving with no loss of visibility or jacket performance.

Two toughened borosilicate 3.3 or soda lime windows and PTFE gaskets are unchanged. Face-to-face matches the stainless version exactly, from 160 mm at 25NB to 1400 mm at 400NB, so the two are interchangeable in a layout.

Features

Built into every unit.

  • Heating or cooling jacket keeps the glass clear on crystallising duty
  • Mild steel body and jacket — lower cost where stainless is not required
  • Two toughened borosilicate 3.3 or soda lime windows
  • 25NB to 400NB, dimensions identical to the stainless version
  • High pressure rating up to 30 bar on request

Benefits

Why it earns its place in the line.

  • Jacketed performance at mild steel cost
  • Dimensionally interchangeable with the stainless jacketed model
  • Robust flanged body drops straight into an existing line
  • Glass and gaskets replaceable in situ without cutting the pipework
  • Mountable in any orientation

Applications & industries

Where it is specified.

Typical applications

  • Crystallising and viscous products on non-corrosive service
  • Steam-traced solvent and oil lines
  • Warm product transfer where carbon steel is acceptable
  • Confirming that a line is actually flowing
  • Watching for colour change, cloudiness or phase separation

Industries served

  • Chemical processing
  • Pharmaceutical
  • Dairy & food
  • Water & effluent treatment
  • Agrochemicals
  • Paper & bleaching
  • Petrochemical
  • Distillation & solvent recovery

Technical data

Specification for MS Jacketed Double Window Sight Flow Indicator.

Figures below are for this product only — every item in the range carries its own dimension table.

MS Jacketed Double Window Sight Flow Indicator — technical specification
Product typeJacketed double window sight flow indicator
Body materialMS
Jacket materialMS
GlassToughened borosilicate 3.3 or soda lime, 2 off
GasketPTFE, 4 off
FastenersG.I. / A2 / CF8
Size range25NB to 400NB
Face to face160 mm to 1400 mm, tolerance ±3 mm
Flange standardANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 also available
Pressure ratingHigh pressure rating up to 30 bar can be provided on request
TestingHydro tested to the standard hydro test pressure chart; radiography on request
CertificationMaterial and pressure test certificate can be provided on request
MS Jacketed Double Window Sight Flow Indicator — dimensional table
SizeOD (±3)PCDH (No.)H dia.L (±3)
25NB10879416160
40NB12798416200
50NB152121419230
80NB191152419310
100NB229191819350
150NB279241822480
200NB343298822650
250NB4063621225780
300NB4834321225900
350NB53347612291090
400NB59754016291400

All dimensions in mm. Flange drilling to ANSI B-16.5; BS-10 Table E, BS-10 Table F and PN 10 drilling are also available — see the flange standards table.

Material specification
No.DescriptionQty.Material
1Body1MS
2Jacketed body1MS
3Toughened glass2Borosilicate 3.3 / soda lime
4Gasket4PTFE
5Connectors2MS
6Fasteners—G.I./A2/CF8

Available on request

  • Material and pressure test certificate on request
  • High pressure rating up to 30 bar
  • Customised MOC for body and jacket
  • Different flange standards

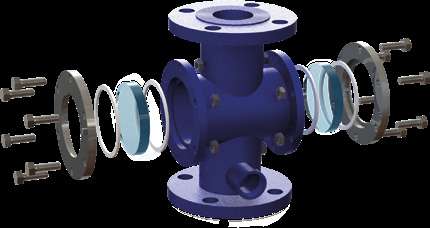

Exploded view

Every part, in assembly order.

Item numbers match the material specification table above.

Exploded assembly view of the MS Jacketed Double Window Sight Flow Indicator showing numbered components

FAQ

Questions we are asked about this item.

Yes — face to face, flange OD, PCD and drilling are identical across 25NB to 400NB, so the two are interchangeable in a pipework layout.

Whenever the process or the external environment attacks carbon steel, or where product contamination by iron matters. For clean solvents, oils and warm non-aqueous duty, mild steel is usually sufficient.
