Azeotropic separation tubular sight flow indicator with separation flanges and glass tube
Tubular Sight Flow Indicators

Azeotropic Separation Tubular Sight Flow Indicator

Density separation sight glass, diameters to 400NB

Tubular sight glass with separation flanges used to separate different chemicals based on density — custom designed to your requirement, diameters up to 400NB.

Request a quotation Full technical data and dimensions Request the datasheet
At a glance
Product typeAzeotropic separation tubular sight flow indicator
Separation flangeCF8 / CF8M / CF3M, 2 off
Glass tubeBorosilicate 3.3, 1 off
GasketPTFE, 2 off
Tie rodA2 / CF8
FastenersA2 / CF8
Safety shieldPolycarbonate / acrylic, provided on request
Size rangeDiameters up to 400NB

Product overview

What it does, and where it fits.

In azeotropic distillation the overhead condenses into two liquid phases that must be separated and returned or drawn off individually. This unit combines the glass observation section with separation flanges, so the interface between the two phases is both visible and physically separated in one item.

Because the geometry depends on the two densities, the flow rates and the reflux arrangement, dimensions are customised — the catalogue states that dimensions can be customised and designed as per customer's requirement. Diameters up to 400NB can be manufactured.

Flanges are cast stainless in CF8, CF8M or CF3M, with a borosilicate 3.3 glass tube and PTFE gaskets.

Features

Built into every unit.

  • Separation flanges combine phase separation with visual observation
  • Used for separating different chemicals based on density
  • Diameters up to 400NB can be manufactured
  • Custom sizes and custom designs available
  • Cast stainless flanges with borosilicate 3.3 glass tube

Benefits

Why it earns its place in the line.

  • Separation and observation in a single item
  • Interface position visible at all times
  • Built to the densities and flows of your specific duty
  • Safety shield available for additional protection

Applications & industries

Where it is specified.

Typical applications

  • Azeotropic distillation overhead separation
  • Solvent recovery and dewatering
  • Two-phase liquid decanting
  • Any density-based separation needing visual confirmation

Industries served

  • Chemical processing
  • Pharmaceutical
  • Dairy & food
  • Water & effluent treatment
  • Agrochemicals
  • Paper & bleaching
  • Petrochemical
  • Distillation & solvent recovery

Technical data

Specification for Azeotropic Separation Tubular Sight Flow Indicator.

Figures below are for this product only — every item in the range carries its own dimension table.

Azeotropic Separation Tubular Sight Flow Indicator — technical specification
Product typeAzeotropic separation tubular sight flow indicator
Separation flangeCF8 / CF8M / CF3M, 2 off
Glass tubeBorosilicate 3.3, 1 off
GasketPTFE, 2 off
Tie rodA2 / CF8
FastenersA2 / CF8
Safety shieldPolycarbonate / acrylic, provided on request
Size rangeDiameters up to 400NB
DimensionsCustomised and designed as per customer's requirement
FunctionSeparating different chemicals based on density
Azeotropic Separation Tubular Sight Flow Indicator — dimensional table
ParameterValue
Maximum diameter400NB
DimensionsCustomised and designed as per customer's requirement
Separation flangeCF8 / CF8M / CF3M
Glass tubeBorosilicate 3.3
GasketPTFE
Safety shieldPolycarbonate / acrylic, on request

The catalogue states “Dimensions can be customised and we can design as per customer's requirement” for this item and publishes no standard size table, so none has been assumed here.

Material specification
No.DescriptionQty.Material
1Separation flange2CF8/CF8M/CF3M
2Gasket2PTFE
3Glass tube1Borosilicate 3.3
4Tie rod—A2/CF8
5Fasteners—A2/CF8
6Safety shield*1Polycarbonate / acrylic

Available on request

  • Custom sizes and custom designs
  • Diameters up to 400NB
  • Safety shield on request

Exploded view

Every part, in assembly order.

Item numbers match the material specification table above.

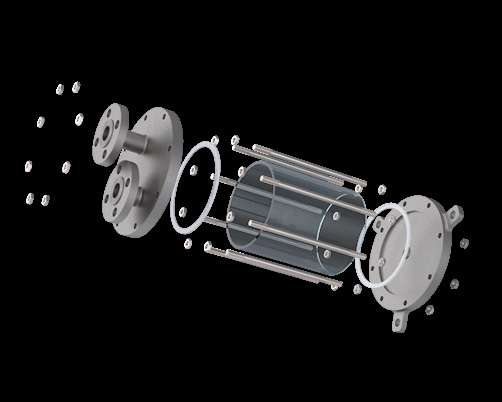

Exploded assembly view of the Azeotropic Separation Tubular Sight Flow Indicator showing numbered components
